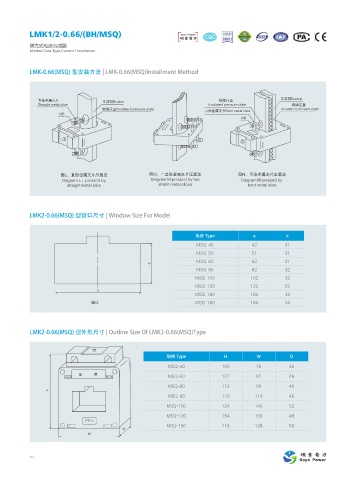

LMK1/2-0.66/(BH/MSQ)

塑壳式电流互感器
Molded Case Type Current Transformer

LMK-0.66(MSQ) 型安装方法 | LMK-0.66(MSQ)Installment Method

Ⱐ᲍䛽ᆊᩛ❳ ⅳ≭ᢾ#VTCBS 㐉㑄ࢷⰄ ⅳ≭ᢾ#VTCBS
4USBJHIU NFUBM TMJDF *OTVMBUFE QSFTTVSF QMBUF 㐉㑄ࢷⰄ
㐉㑄ࢷⰄ*OTVMBUFE QSFTTVSF QMBUF ᐿᒎ䛽ᆊᩛ❳#FOU NFUBM TMJDF *OTVMBUFE QSFTTVSF QMBUF
.
.

ప-ȟⰠᒎ䛽ᆊᩛ❳ࢷ㉓∁ ప.ȟθⰠᒎ䛽ᆊᩛ❳ࢷ㉓∁ ప/ȟᐿᒎ䛽ᆊᩛ❳ࢷ㉓∁
%JBHSBN -喝QSFTTFE CZ %JBHSBN . QSFTTFE CZ UXP %JBHSBN / QSFTTFE CZ
TUSBJHIU NFUBM TMJDF TUSBJIU NFUBM TMJDFT CFOU NFUBM TMJDF

LMK2-0.66(MSQ) 型窗口尺寸 | Window Size For Model

规格 Type a e
MSQ-40 42 31
MSQ-50 51 31
MSQ-60 62 31
F
MSQ-80 82 32
MSQ-100 102 32
MSQ-120 122 52
B
MSQ-180 184 34
ప2 MSQ-180 184 34

LMK2-0.66(MSQ) 型外形尺寸 | Outline Size Of LMK2-0.66(MSQ)Type

规格 Type H W D
MSQ-40 105 76 46
䨙 ❸
4 , 4 , MSQ-50 107 87 46
MSQ-60 112 99 46
)
MSQ-80 120 119 46
MSQ-100 124 140 52
MSQ-120 154 158 48
1 -
MSQ-180 115 128 50
%
