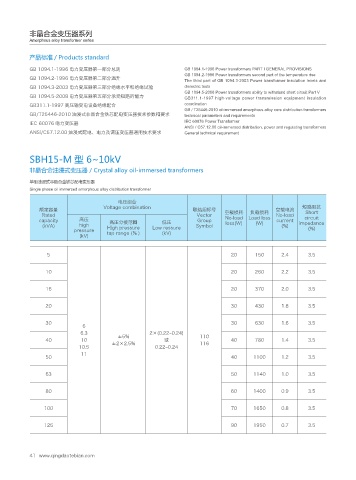

非晶合金变压器系列
Amorphous alloy transformer series
产品标准 / Products standard
GB 1094.1-1996 电力变压器第一部分总则 GB 1094.1-1996 Power transformers PART I GENERAL PROVISIONS
GB 1094.2-1996 Power transformers second part of the temperature rise
GB 1094.2-1996 电力变压器第二部分温升
The third part of GB 1094.3-2003 Power transformer insulation levels and
GB 1094.3-2003 电力变压器第三部分绝缘水平和绝缘试验 dielectric tests
GB 1094.5-2008 Power transformers ability to withstand short circuit Part V
GB 1094.5-2008 电力变压器第五部分承受短路的能力 GB311.1-1997 high-voltage power transmission equipment insulation
GB311.1-1997 高压输变电设备绝缘配合 coordination
GB / T25446-2010 oil-immersed amorphous alloy core distribution transformers
GB/T25446-2010 油浸式非晶合金铁芯配电变压器技术参数和要求 technical parameters and requirements
IEC 60076 电力变压器 IEC 60076 Power Transformer
ANSI / C57.12.00 oil-immersed distribution, power and regulating transformers
ANSI/C57.12.00 油浸式配电、电力及调压变压器通用技术要求 General technical requirement
SBH15-M 型 6~10kV
非晶合金油浸式变压器 / Crystal alloy oil-immersed transformers
单相油浸式非晶合金铁芯配电变压器
Single phase oil immersed amorphous alloy distribution transformer
电压组合
额定容量 Voltage combination 联结组标号 空载损耗 负载损耗 空载电流 短路阻抗
Short
Rated Vector No-load Load loss No-load circuit
capacity 高压 高压分接范围 低压 Group current
(kVA) high High pressure Low ressure Symbol loss(W) (W) (%) impedance
pressure (%)
(kV) tap range (％ ) (kV)
5 20 150 2.4 3.5
10 20 260 2.2 3.5
16 20 370 2.0 3.5
20 30 430 1.8 3.5
30 30 630 1.6 3.5
6
6.3 2×(0.22~0.24)
±5%
40 10 ±2×2.5% 或 110 40 780 1.4 3.5
116
10.5 0.22~0.24
11
50 40 1100 1.2 3.5
63 50 1140 1.0 3.5
80 60 1400 0.9 3.5
100 70 1650 0.8 3.5
125 90 1950 0.7 3.5
