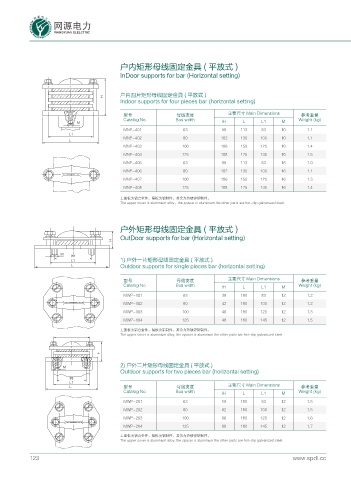

户内矩形母线固定金具 ( 平放式 )

InDoor supports for bar (Horizontal setting)

户内四片矩形母线固定金具 ( 平放式 )
*
Indoor supports for four pieces bar (horizontal setting)
型号 母线宽度 主要尺寸 Main Dimensions 参考重量
Catalog No. Bus width Weight (kg)
/ H L L1 M
MNP-401 63 98 113 83 10 1.1
.
MNP-402 80 102 130 100 10 1.1
.
MNP-403 100 106 150 120 10 1.4
MNP-404 125 108 175 145 10 1.5
MNP-405 63 98 113 83 16 1.0
MNP-406 80 102 130 100 16 1.1
MNP-407 100 106 150 120 16 1.3
MNP-408 125 108 175 145 16 1.4
上盖板为铝合金件，隔板为铝制件，其余为热镀锌钢制件。
The upper cover is aluminium alloy，the spacer is aluminium the other parts are hot-dip galvanized steel.

户外矩形母线固定金具 ( 平放式 )
OutDoor supports for bar (Horizontal setting)
*

/

. 1) 户外一片矩形母线固定金具 ( 平放式 )
. Outdoor supports for single pieces bar (horizontal setting)

型号 母线宽度 主要尺寸 Main Dimensions 参考重量
Catalog No. Bus width H L L1 M Weight (kg)
MWP-101 63 38 180 83 12 1.2
MWP-102 80 42 180 100 12 1.2
MWP-103 100 46 180 120 12 1.3
MWP-104 125 48 180 145 12 1.5
上盖板为铝合金件，隔板为铝制件，其余为热镀锌钢制件。
The upper cover is aluminium alloy, the spacer is aluminium the other parts are hot-dip galvanized steel.

*
2) 户外二片矩形母线固定金具 ( 平放式 )
/
Outdoor supports for two pieces bar (horizontal setting)

.
. 型号 母线宽度 主要尺寸 Main Dimensions 参考重量
Catalog No. Bus width H L L1 M Weight (kg)
MWP-201 63 58 180 83 12 1.5
MWP-202 80 62 180 100 12 1.5
MWP-203 100 66 180 120 12 1.6
MWP-204 125 88 180 145 12 1.7
上盖板为铝合金件，隔板为铝制件，其余为热镀锌钢制件。
The upper cover is aluminium alloy, the spacer is aluminium the other parts are hot-dip galvanized steel.

123 www.spdl.cc
