WANGYUAN 电站金具
ELELCTRIC TECHNOLOGY Ltd. Substation fitting

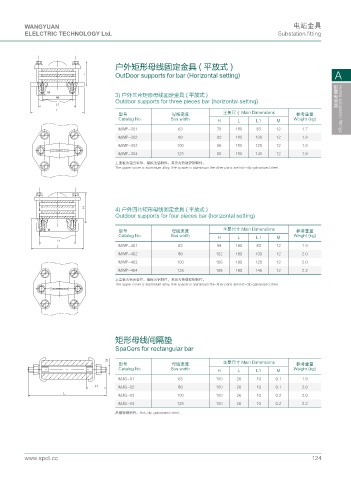

户外矩形母线固定金具 ( 平放式 )

* OutDoor supports for bar (Horizontal setting) A

/ 3) 户外三片矩形母线固定金具 ( 平放式 )

Outdoor supports for three pieces bar (horizontal setting)
.
. 配变电金具 Hotels substation fittings
型号 母线宽度 主要尺寸 Main Dimensions 参考重量
Catalog No. Bus width H L L1 M Weight (kg)
MWP-301 63 78 180 83 12 1.7
MWP-302 80 82 180 100 12 1.8
MWP-303 100 86 180 120 12 1.8
MWP-304 125 88 180 145 12 1.9

上盖板为铝合金件，隔板为铝制件，其余为热镀锌钢制件。
The upper cover is aluminium alloy, tHe spacer is aluminium the other parts are hot-dip galvanized steel.

* 4) 户外四片矩形母线固定金具 ( 平放式 )
Outdoor supports for four pieces bar (horizontal setting)

/ 型号 母线宽度 主要尺寸 Main Dimensions 参考重量
Catalog No. Bus width H L L1 M Weight (kg)
.
. MWP-401 63 98 180 83 12 1.9
MWP-402 80 102 180 100 12 2.0
MWP-403 100 106 180 120 12 2.0
MWP-404 125 108 180 145 12 2.2
上盖板为铝合金件，隔板为铝制件，其余为热镀锌钢制件。
The upper cover is aluminium alloy, tHe spacer is aluminium the other parts are hot-dip galvanized steel.

矩形母线间隔垫
SpaCers for rectangular bar

/ 主要尺寸 Main Dimensions
型号 母线宽度 参考重量
Catalog No. Bus width H L L1 M Weight (kg)
MJG-01 63 100 26 10 0.1 1.9
. MJG-02 80 100 26 10 0.1 2.0
.
MJG-03 100 100 26 10 0.2 2.0
MJG-04 125 100 26 10 0.2 2.2
热镀锌钢制件。Hot-dip galvanized steel.

www.spdl.cc 124
