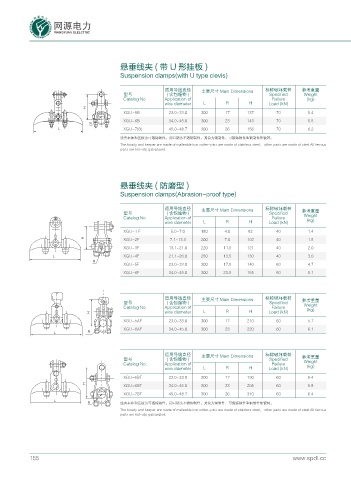

悬垂线夹 ( 带 U 形挂板 )

Suspension clamps(with U type clevis)

适用导线直径 主要尺寸 Main Dimensions 标称破坏载荷 参考重量
型号 ( 含包缠物 ) Specified Weight
Catalog No. Application of Failure (kg)
wire diameter L R H Load (kN)
*
XGU-5B 23.0~33.0 300 17 137 70 5.4
XGU-6B 34.0~45.0 300 23 143 70 5.8
4
. XGU-7(B) 45.0~48.7 300 26 156 70 6.2
线夹本体和压板为可锻铸铁件，闭口销为不锈钢制件，其余为钢制件、可锻铸铁件和钢制件热镀锌。
The boady and keeper are made of malleable iron.cotter-pins are made of stainless steel， other parts are made of steel.AII ferrous
parts are hot-dip galvanized.

悬垂线夹 ( 防磨型 )
Suspension clamps(Abrasion-proof type)

适用导线直径 主要尺寸 Main Dimensions 标称破坏载荷
型号 ( 含包缠物 ) Specified 参考重量
Weight
Catalog No. Application of Failure (kg)
wire diameter L R H Load (kN)
XGU-1 F 5.0~7.0 180 4.0 82 40 1.4
* XGU-2F 7.1~13.0 200 7.0 102 40 1.8
XGU-3F 13.1~21.0 220 11.0 121 40 2.0
. XGU-4F 21.1~26.0 250 13.5 130 40 3.0
4
XGU-5F 23.0~33.0 300 17.0 140 60 4.7
XGU-6F 34.0~45.0 300 23.0 155 60 5.1

适用导线直径 主要尺寸 Main Dimensions 标称破坏载荷
型号 ( 含包缠物 ) Specified 参考重量
Weight
Catalog No. Application of Failure (kg)
* wire diameter L R H Load (kN)
XGU-5AF 23.0~33.0 300 17 210 60 5.7
XGU-6AF 34.0~45.0 300 23 220 60 6.1
. 4

适用导线直径 主要尺寸 Main Dimensions 标称破坏载荷
型号 ( 含包缠物 ) Specified 参考重量
Weight
Catalog No. Application of Failure (kg)
wire diameter L R H Load (kN)
XGU-5BF 23.0~33.0 300 17 190 60 5.4
* XGU-6BF 34.0~45.0 300 23 205 60 5.8
XGU-7BF 45.0~48.7 300 26 310 60 6.4
.
4 线夹本体和压板为可锻铸铁件，闭口销为不锈钢制件，其余为钢制件、可锻铸铁件和钢制件热镀锌。
The boady and keeper are made of malleable iron.cotter-pins are made of stainless steel， other parts are made of steel.AII ferrous
parts are hot-dip galvanized.

155 www.spdl.cc
