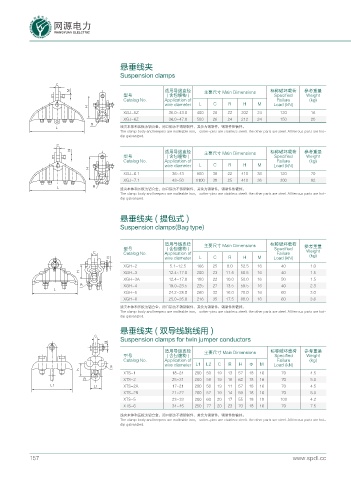

悬垂线夹

Suspension clamps
%
/ 适用导线直径 主要尺寸 Main Dimensions 标称破坏载荷 参考重量
型号 ( 含包缠物 ) Specified Weight
Catalog No. Application of Failure (kg)
wire diameter L C R H M Load (kN)
*
XGJ-5Z 36.0~43.0 400 26 22 202 24 120 16
XGJ-6Z 36.0~47.0 500 26 24 212 24 150 20
4
. 线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.
%
/ 适用导线直径 主要尺寸 Main Dimensions 标称破坏载荷 参考重量
型号 ( 含包缠物 ) Specified Weight
Catalog No. Application of Failure (kg)
wire diameter L C R H M Load (kN)
*
XGJ-6.1 36~43 900 38 22 410 36 120 70
XGJ-7.1 43~50 1100 38 25 410 36 300 82
. 4
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

悬垂线夹 ( 提包式 )
Suspension clamps(Bag type)

适用导线直径 主要尺寸 Main Dimensions 标称破坏载荷
型号 ( 含包缠物 ) Specified 参考重量
% Catalog No. Application of Failure Weight
/ wire diameter L C R H M Load (kN) (kg)
XGH-2 5.1~12.5 166 25 8.0 52.5 16 40 1.0
* XGH-3 12.4~17.0 200 23 11.5 50.5 16 40 1.5
XGH-3A 12.4~17.0 180 22 10.0 50.0 16 50 1.5
4 XGH-4 19.0~23.5 225 27 13.5 59.5 16 40 2.3
.
XGH-5 24.2~28.0 260 32 16.0 70.0 16 60 3.0
XGH-6 25.0~35.0 216 35 17.5 68.0 16 60 3.6
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.
悬垂线夹 ( 双导线跳线用 )
% Suspension clamps for twin jumper conductors
/
适用导线直径 主要尺寸 Main Dimensions 标称破坏载荷 参考重量
型号 ( 含包缠物 ) Specified Weight
Catalog No. Application of Failure (kg)
wire diameter L1 L2 C R H Φ M Load (kN)
4
J
XTS-1 18~24 200 50 19 13 57 18 16 70 4.5
4 XTS-2 25~31 200 56 19 16 62 18 16 70 5.0
. . XTS-2A 17~21 200 50 19 11 57 18 16 70 4.5
XTS-2B 21~27 200 52 19 14 59 18 16 70 5.0
XTS-5 23~33 200 60 20 17 55 18 18 100 4.2
XTS-6 34~45 250 77 20 23 70 18 16 70 7.5
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

157 www.spdl.cc
