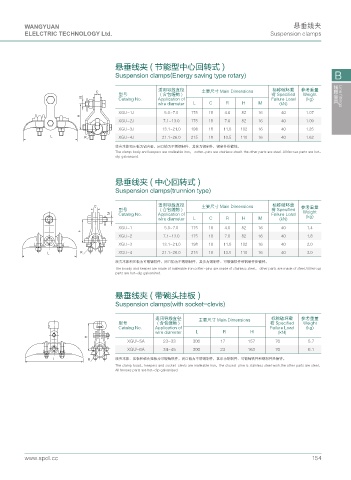

WANGYUAN 悬垂线夹
ELELCTRIC TECHNOLOGY Ltd. Suspension clamps

悬垂线夹 ( 节能型中心回转式 )

Suspension clamps(Energy saving type rotary) B

适用导线直径 标称破坏载 参考重量
% 主要尺寸 Main Dimensions
/ 型号 ( 含包缠物 ) 荷 Specified Weight 线路金具 Line fittings
Catalog No. Application of Failure Load (kg)
wire diameter L C R H M (kN)
XGU-1J 5.0~7.0 175 18 4.0 82 16 40 1.07
*
XGU-2J 7.1~13.0 175 18 7.0 82 16 40 1.09
XGU-3J 13.1~21.0 198 18 11.0 102 16 40 1.25
. 4 XGU-4J 21.1~26.0 215 18 13.5 110 16 40 1.62
线夹本体和压板为铝合金，闭口销为不绣纲制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

悬垂线夹 ( 中心回转式 )
Suspension clamps(trunnion type)

% 适用导线直径 主要尺寸 Main Dimensions 标称破坏载 参考重量
型号 ( 含包缠物 ) 荷 Specified
/ Catalog No. Application of Failure Load Weight
wire diameter L C R H M (kN) (kg)
XGU-1 5.0~7.0 175 18 4.0 82 16 40 1.4
*
XGU-2 7.1~13.0 175 18 7.0 82 16 40 1.8
XGU-3 13.1~21.0 198 18 11.0 102 16 40 2.0
. 4 XGU-4 21.1~26.0 215 18 13.5 110 16 40 3.0
线夹本体和压板为可锻铸铁件，闭口销为不锈钢制件，其余为钢制件、可锻铸铁件和钢制件热镀锌。
The boady and keeper are made of malleable iron.cotter-pins are made of stainless steel， other parts are made of steel.All ferrous
parts are hot-dip galvanized.

悬垂线夹 ( 带碗头挂板 )

Suspension clamps(with socket-clevis)

适用导线直径 主要尺寸 Main Dimensions 标称破坏载 参考重量
型号 ( 含包缠物 ) 荷 Specified Weight
Catalog No. Application of Failure Load (kg)
wire diameter L R H (kN)
*
XGU-5A 23~33 300 17 157 70 5.7
XGU-6A 34~45 300 23 163 70 6.1
. 4 线夹本体、压板和碗头挂板为可锻铸铁件，闭口销为不锈钢制件，其余为钢制件、可锻铸铁件和钢制件热镀锌。
The clamp boad，keepers and socket-clevis are malleable iron，the closed-pine is stainless steel work.the other parts are steel，
All ferrows parts are hot-dip galvanized.

www.spdl.cc 154
