WANGYUAN 悬垂线夹
ELELCTRIC TECHNOLOGY Ltd. Suspension clamps

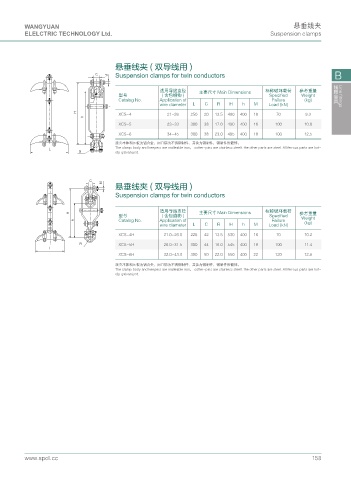

悬垂线夹 ( 双导线用 )

% / Suspension clamps for twin conductors B

适用导线直径 主要尺寸 Main Dimensions 标称破坏载荷 参考重量
型号 ( 含包缠物 ) Specified Weight 线路金具 Line fittings
Catalog No. Application of Failure (kg)
wire diameter L C R H h M Load (kN)
* XCS-4 21~26 250 20 13.5 490 400 18 70 9.3
J
XCS-5 23~33 300 38 17.0 490 400 18 100 10.8
XCS-6 34~45 300 38 23.0 495 400 18 100 12.5
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
. The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
4 dip galvanized.

%
/
悬垂线夹 ( 双导线用 )
Suspension clamps for twin conductors

适用导线直径 标称破坏载荷
* 主要尺寸 Main Dimensions 参考重量
型号 ( 含包缠物 ) Specified
J Catalog No. Application of Failure Weight
(kg)
wire diameter L C R H h M Load (kN)
XCS-4H 21.0~26.0 225 42 13.5 530 400 16 70 10.2
4 XCS-5H 26.0~31.5 300 44 16.0 545 400 18 100 11.4
.
XCS-6H 32.0~43.0 300 50 22.0 550 400 22 120 12.9
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

www.spdl.cc 158
