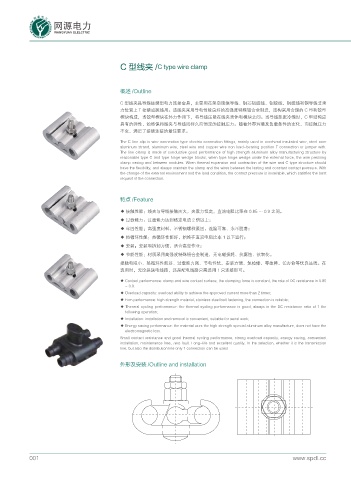

C 型线夹 /C type wire clamp

概述 /Outline

C 型线夹是导线接续型电力连接金具，主要用在架空绝缘导线、钢芯铝绞线、铝绞线、钢绞线和铜导线非承
力位置上 T 接续或跳线用。该线夹采用导电性能良好的高强度特殊铝合金制造，结构采用合理的 C 型和铰型
楔块构成，当铰型楔块在外力作用下，将导线压紧在线夹壳体和模块之间。当导线热胀冷缩时，C 型结构应
具有的弹性，始终保持线夹与导线间持久而恒定的接触压力。随着外界环境及负载条件的变化，而接触压力
不变，满足了接续连接的最佳要求。
The C line clip is wire connection type electric connection fittings, mainly used in overhead insulated wire, steel core
aluminum strand, aluminum wire, steel wire and copper wire non load-bearing position T connection or jumper with.
The line clamp is made of conductive good performance of high strength aluminum alloy manufacturing structure by
reasonable type C and type hinge wedge blocks, when type hinge wedge under the external force, the wire pressing
clamp casing and between modules. When thermal expansion and contraction of the wire and C type structure should
have the flexibility, and always maintain the clamp and the wires between the lasting and constant contact pressure. With
the change of the external environment and the load condition, the contact pressure is invariable, which satisfies the best
request of the connection.

特点 /Feature

◆ 接触性能：线夹与导线接触面大，夹紧力恒定，直流电阻比率在 0.85 〜 0.9 之间。
◆ 过载能力：过载能力达到核定电流 2 倍以上；
◆ 牢固性能：高强度材料，不锈钢螺栓紧固，连接可靠、永不脱落；
◆ 热循环性能：热循环性能好，始终在直流电阻比率 1 以下运行；
◆ 安装：安装和拆卸方便，适合高空作业；
◆ 节能性能：材质采用高强度特殊铝合金制造，无电磁损耗、抗腐蚀、抗氧化。
接触电阻小、热循环性能好、过载能力强、节电性优、安装方便、免检修、零故障、长寿命等优良品质。在
选用时，无论是送电线路，还是配电线路只需选用 1 只连接即可。
◆ Contact performance: clamp and wire contact surface, the clamping force is constant, the rate of DC resistance in 0.85
~ 0.9.
◆ Overload capacity: overload ability to achieve the approved current more than 2 times;
◆ Firm performance: high strength material, stainless steel bolt fastening, the connection is reliable;
◆ Thermal cycling performance: the thermal cycling performance is good, always in the DC resistance ratio of 1 the
following operation;
◆ Installation: installation and removal is convenient, suitable for aerial work;
◆ Energy saving performance: the material uses the high strength special aluminum alloy manufacture, does not have the
electromagnetic loss.
Small contact resistance and good thermal cycling performance, strong overload capacity, energy saving, convenient
installation, maintenance free, zero fault. Long-life and excellent quality. In the selection, whether it is the transmission
line, but also the distribution line only 1 connection can be used.

外形及安装 /Outline and installation
