WANGYUAN 架空绝缘导线金具
ELELCTRIC TECHNOLOGY Ltd. Aerial Insulation Conductor Fitting

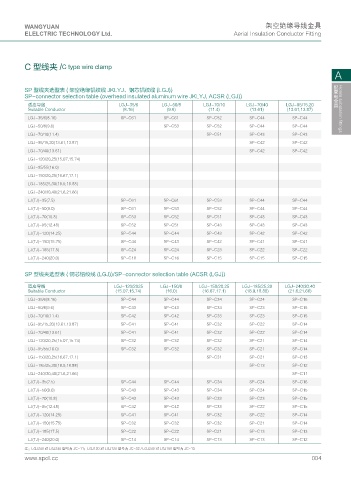

C 型线夹 /C type wire clamp
A

SP 型线夹选型表 ( 架空绝缘铝绞线 JKLYJ、钢芯铝绞线 (LGJ))
SP-connector selection table (overhead insulated aluminum wire JKLYJ, ACSR (LGJ))
适应导线 LGJ-35/6 LGJ-50/8 LGJ-70/10 LGJ-70/40 LGJ-95/15,20
Suitable Conductor (8.16) (9.6) (11.4) (13.61) (13.61,13.87) 配变电金具 Hotels substation fittings
LGJ-35/6(8.16) SP-C61 SP-C61 SP-C52 SP-C44 SP-C44
LGJ-50/8(9.6) SP-C53 SP-C52 SP-C44 SP-C44
LGJ-70/10(11.4) SP-C51 SP-C43 SP-C43
LGJ-95/15,20(13.61,13.87) SP-C42 SP-C42
LGJ-70/40(13.61) SP-C42 SP-C42
LGJ-120/20,25(15.07,15.74)
LGJ-95/55(16.0)
LGJ-150/20,25(16.67,17.1)
LGJ-185/25,30(18.9,18.88)
LGJ-240/30,40(21.6,21.66)
LJ(TJ)-35(7.5) SP-C61 SP-C61 SP-C53 SP-C44 SP-C44
LJ(TJ)-50(9.0) SP-C61 SP-C53 SP-C52 SP-C44 SP-C44
LJ(TJ)-70(10.8) SP-C53 SP-C52 SP-C51 SP-C43 SP-C43
LJ(TJ)-95(12.48) SP-C52 SP-C51 SP-C43 SP-C43 SP-C43
LJ(TJ)-120(14.25) SP-C44 SP-C44 SP-C43 SP-C42 SP-C42
LJ(TJ)-150(15.75) SP-C44 SP-C43 SP-C42 SP-C41 SP-C41
LJ(TJ)-185(17.5) SP-C24 SP-C24 SP-C23 SP-C22 SP-C22
LJ(TJ)-240(20.0) SP-C16 SP-C16 SP-C15 SP-C15 SP-C15

SP 型线夹选型表 ( 钢芯铝绞线 (LGJ))/SP-connector selection table (ACSR (LGJ))
SP 型线夹选型表 ( 架空绝缘铝绞线 (JKLYJ )、钢芯铝绞线 (LGJ ) )
SP-type clamp selection (Table overhead insulated aluminum conductors (JKLYJ), ACSR (LGJ)) 适应导线 LGJ-120/2025 LGJ-150/8 LGJ-150/20,25 LGJ-185/25,30 LGJ-240/30,40
Suitable Conductor (15.07,15.74) (16.0) (16.67,17.1) (18.9,18.88) (21.6,21.66)
LGJ-35/6(8.16) SP-C44 SP-C44 SP-C34 SP-C24 SP-C16
LGJ-50/8(9.6) SP-C43 SP-C43 SP-C34 SP-C23 SP-C15
LGJ-70/10(11.4) SP-C42 SP-C42 SP-C33 SP-C23 SP-C15
LGJ-95/15,20(13.61,13.87) SP-C41 SP-C41 SP-C32 SP-C22 SP-C14
LGJ-70/40(13.61) SP-C41 SP-C41 SP-C32 SP-C22 SP-C14
LGJ-120/20,25(15.07,15.74) SP-C32 SP-C32 SP-C32 SP-C21 SP-C14
LGJ-95/55(16.0) SP-C32 SP-C32 SP-C32 SP-C21 SP-C14
LGJ-150/20,25(16.67,17.1) SP-C31 SP-C21 SP-C13
LGJ-185/25,30(18.9,18.88) SP-C13 SP-C12
LGJ-240/30,40(21.6,21.66) SP-C11
LJ(TJ)-35(7.5) SP-C44 SP-C44 SP-C34 SP-C24 SP-C16
LJ(TJ)-50(9.0) SP-C43 SP-C43 SP-C34 SP-C24 SP-C15
LJ(TJ)-70(10.8) SP-C43 SP-C43 SP-C33 SP-C23 SP-C15
LJ(TJ)-95(12.48) SP-C42 SP-C42 SP-C33 SP-C22 SP-C15
LJ(TJ)-120(14.25) SP-C41 SP-C41 SP-C32 SP-C22 SP-C14
LJ(TJ)-150(15.75) SP-C32 SP-C32 SP-C32 SP-C21 SP-C14
LJ(TJ)-185(17.5) SP-C22 SP-C22 SP-C21 SP-C13 SP-C13
LJ(TJ)-240(20.0) SP-C14 SP-C14 SP-C13 SP-C13 SP-C12
注：LGJ240 对 LGJ240 型号为 JC-11；LGJ120 对 LGJ120 型号为 JC-32 / LGJ240 对 LGJ150 型号为 JC-13
www.spdl.cc 004
