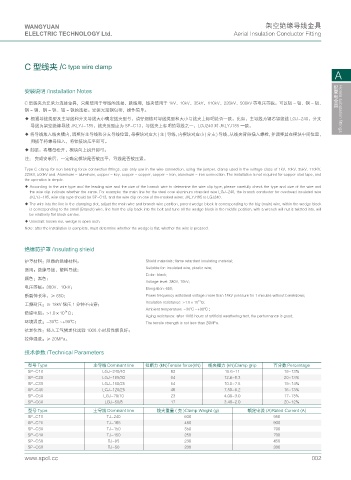

Page 24 - 网源电力科技有限公司

WANGYUAN 架空绝缘导线金具
ELELCTRIC TECHNOLOGY Ltd. Aerial Insulation Conductor Fitting

C 型线夹 /C type wire clamp
A

安装说明 /Installation Notes

C 型线夹为非承力连接金具，只能使用于导线的连接、跳线用，线夹使用于 1kV、10kV、35kV、110kV、220kV、500kV 等电压等级。可以铝 - 铝、铜 - 铝、
铜 - 铜、铜 - 铁、铝 - 铁的连接。安装无须铜包带，操作简单。 配变电金具 Hotels substation fittings
◆ 根据导线类型及主导线和分支导线大小确定线夹型号，请仔细核对导线类型和大小与线夹上标明是否一致。比如：主导线为钢芯铝绞线 LGJ-240，分支
导线为架空绝缘导线 JKLYJ-185，线夹选型应为 SP-C13，与线夹上标明的导线之一：LGJ240 对 JKLYJ185 —致。
◆ 将导线放入线夹槽内，调整好主导线和分支导线位置，母楔块对应大(主)导线，内楔块对应小(分支)导线，从线夹背部插入螺栓，并调整其在楔块中间位置，
用扳手将螺母扭入，将铰接块压平即可。
◆ 卸装：将螺母松开，楔块向上拱开即可。
注： 完成安装后，一定确定楔块是否被压平，导线是否被压紧。
Type C clamp for non bearing force connection fittings, can only use in the wire connection, using the jumper, clamp used in the voltage class of 1kV, 10kV, 35kV, 110KV,
220kV, 500kV and. Aluminum - aluminum, copper - key, copper - copper, copper - iron, aluminum - iron connection. The installation is not required for copper clad tape, and
the operation is simple.
◆ According to the wire type and the leading wire and the size of the branch wire to determine the wire clip type, please carefully check the type and size of the wire and
the wire clip indicate whether the same. For example: the main line for the steel core aluminum stranded wire LGJ-240, the branch conductor for overhead insulated wire
JKLYJ-185, wire clip type should be SP-C13, and the wire clip on one of the marked wires: JKLYJ185 to LGJ240.
◆ The wire into the line in the clamping slot, adjust the main wire and branch wire position, parent wedge block is corresponding to the big (main) wire, within the wedge block
is corresponding to the small (Branch) wire, line from the clip back into the bolt and tune all the wedge block in the middle position, with a wrench will nut is twisted into, will
be relatively flat block can be.
◆ Uninstall: loosen nut, wedge to open arch.
Note: after the installation is complete, must determine whether the wedge is flat, whether the wire is pressed.

绝缘防护罩 /Insulating shield

护罩材料：阻燃的绝缘材料； Shield materials; flame retardant insulating material;
Suitable for: insulated wire, plastic wire;
适用：绝缘导线，塑料导线；
Color: black;
颜色：黑色；
Voltage level: 380V, 10kV;
电压等级：380V、10kV； Elongation: 650;
断裂伸长率：≥ 650； Power frequency withstand voltage: more than 18kV pressure for 1 minutes without breakdown;
14
工频耐压：≥ 18kV 保压 1 分钟不击穿； Insulation resistance: >1.0×10 Ω;
Ambient temperature: -30℃ ~+90℃ ;
14
绝缘电阻：>1.0×10 Ω；
Aging resistance: after 1008 hours of artificial weathering test, the performance is good;
环境温度：-30℃ ~+90℃； The tensile strength is not less than 20MPa.
抗老化性：经人工气候老化试验 1008 小时后性能良好；
拉伸强度：≥ 20MPa。

技术参数 /Technical Parameters

型号 Type 主导线 Dominant line 拉断力 (kN)Tensile force(kN) 线夹握力 (kN)Clamp grip 百分数 Percentage
SP-C1X LGJ-240/40 83 15.6~11 19~13%
SP-C2X LGJ-185/30 64 12.6~8.3 20~13%
SP-C3X LGJ-150/25 54 10.0~7.5 19~14%
SP-C4X LGJ-120/25 48 7.50~6.2 16~13%
SP-C5X LGJ-70/10 23 4.00~3.0 17~13%
SP-C6X LGJ-50/8 17 3.40~2.0 20~12%
型号 Type 主导线 Dominant line 线夹重量 ( 克 )Clamp Weight (g) 额定电流 (A)Rated Current (A)
SP-C1X TJ-240 600 950
SP-C2X TJ-185 480 900
SP-C3X TJ-150 350 700
SP-C4X TJ-150 250 700
SP-C5X TJ-95 230 450
SP-C6X TJ-50 200 300
www.spdl.cc 002
