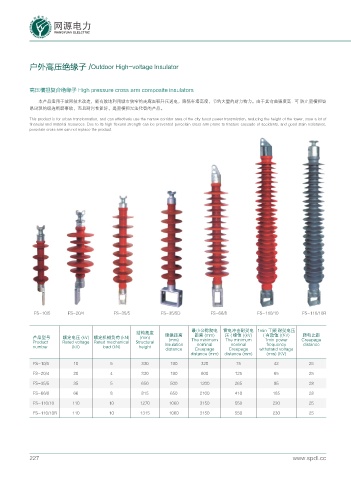

户外高压绝缘子 /Outdoor High-voltage Insulator

高压横担复合绝缘子 High pressure cross arm composite insulators
本产品适用于城网技术改造，能有效地利用城市狭窄的走廊面积升压送电，降低杆塔高度，节约大量的财力物力。由于其弯曲强度高 . 可 防止瓷横担容
易出现的级连断裂事故，而且耐污性能好，是瓷横担无法代替的产品。
This product is for urban transformation, and can effectively use the narrow corridor area of the city boost power transmission, reducing the height of the tower, save a lot of
financial and material resources. Due to its high flexural strength can be prevented porcelain cross arm prone to fracture cascade of accidents, and good stain resistance,
porcelain cross arm can not replace the product.

FS-10/5 FS-20/4 FS-35/5 FS-35/5D FS-66/8 FS-110/10 FS-110/10R

最小公称爬电 雷电冲击耐受电 1min 工频 耐受电压
结构高度
距离 (mm)
爬电比距
产品型号 额定电压 (kV) 额定机械负荷 (kN) (mm) 绝缘距离 The minimum 压 ( 峰值 )(kV) ( 有效值 )(KV) Creepage
The minimum
(mm)
1min power
Product Rated voltage Rated mechanical Structural Insulation nominal nominal frequency distance
number (kV) load (kN) height
distance Creepage Creepage withstand voltage
distance (mm) distance (mm) (rms) (KV)
FS-10/5 10 5 330 190 320 75 42 25
FS-20/4 20 4 330 190 600 125 65 25
FS-35/5 35 5 650 500 1200 265 95 28
FS-66/8 66 8 815 650 2100 410 185 28
FS-110/10 110 10 1270 1060 3150 550 230 25
FS-110/10R 110 10 1315 1060 3150 550 230 25
