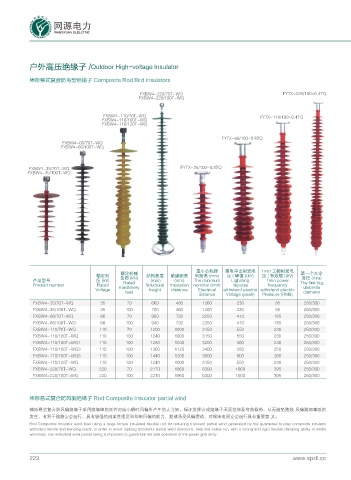

户外高压绝缘子 /Outdoor High-voltage Insulator
棒形悬式复合防鸟型绝缘子 Composite Rod Bird insulators
FXBW4-220/70T-WQ FYTX-220/100-0.4TQ
FXBW4-220/100T-WQ
FXBW4-110/70T-WQ FYTX-110/100-0.4TQ
FXBW4-110/100T-WQ
FXBW4-110/120T-WQ
FYTX-66/100-0.8TQ
FXBW4-66/70T-WQ
FXBW4-66/100T-WQ
FXBW4-35/70T-WQ FYTX-35/100-0.8TQ
FXBW4-35/100T-WQ
最小公称爬 雷电冲击耐受电 1min 工频耐受电
额定机械 第一个大伞
额定电 结构高度 绝缘距离 电距离 (mm) 压 ( 峰值 )(kV) 压 ( 有效值 )(kV)
直径 (mm)
产品型号 压 (kV) 负荷 (kN) (mm) (mm) The minimum Lightning 1min power The first big
Rated
Product number Rated machinery Structural Insulation nominal climb impulse frequency umbrella
Voltage height distance Electrical withstand electric withstand electric
load diameter
distance Voltage (peak) Pressure (RMS)
FXBW4-35/70T-WQ 35 70 660 460 1260 230 95 250/300
FXBW4-35/100T-WQ 35 100 700 460 1260 230 95 250/300
FXBW4-66/70T-WQ 66 70 900 720 2250 410 185 250/300
FXBW4-66/100T-WQ 66 100 940 720 2250 410 185 250/300
FXBW4-110/70T-WQ 110 70 1200 1000 3150 550 230 250/300
FXBW4-110/100T-WQ 110 100 1240 1000 3150 550 230 250/300
FXBW4-110/100T-WQ1 110 100 1280 1040 3200 560 240 250/300
FXBW4-110/100T-WQ3 110 100 1360 1120 3400 580 250 250/300
FXBW4-110/100T-WQ5 110 100 1440 1200 3600 600 260 250/300
FXBW4-110/120T-WQ 110 120 1240 1000 3150 550 230 250/300
FXBW4-220/70T-WQ 220 70 2170 1960 6300 1000 395 250/300
FXBW4-220/100T-WQ 220 100 2210 1960 6300 1000 395 250/300
棒形悬式复合防风偏绝缘子 Rod Composite Insulator partial wind
棒形悬式复合防风偏绝缘子采用绝缘棒的柔性对减小瞬时风偏所产生的大力矩，保证发挥合成绝缘子承受拉伸及弯曲载荷，从而避免路线 风偏跳闸事故的
发生，有利于线路安全运行，具有较强的刚柔性阻尼和抑制风偏的能力，能够承受风偏摆动，对保陣电网安全运行具有重要意 义。
Rod Composite Insulator wind bias using a large torque insulated flexible rod for reducing transient partial wind generated by the guarantee to play composite insulator
withstand tensile and bending loads, in order to avoid tripping accidents partial wind directions, help line safety run, with a strong and rigid flexible damping ability to inhibit
wind bias, can withstand wind partial swing is important to guarantee the safe operation of the power grid array.
