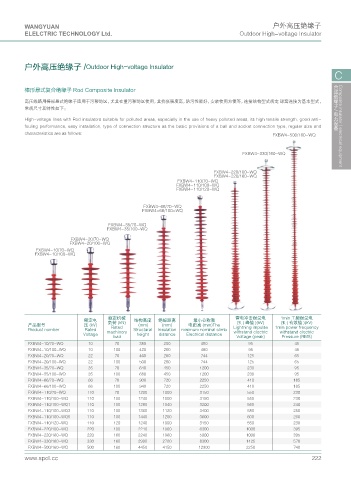

WANGYUAN 户外高压绝缘子
ELELCTRIC TECHNOLOGY Ltd. Outdoor High-voltage Insulator
户外高压绝缘子 /Outdoor High-voltage Insulator
C
棒形悬式复合绝缘子 Rod Composite Insulator
高压线路用棒形悬式绝缘子适用于污秽地区，尤其在重污秽地区使用，其抗张强度高，防污性能好，安装使用方便等，连接结构型式规定 球窝连接为基本型式，
常规尺寸及特性如下： / 电力设备
High-voltage lines with Rod insulators suitable for polluted areas, especially in the use of heavy polluted areas, its high tensile strength, good anti-
fouling performance, easy installation, type of connection structure as the basic provisions of a ball and socket connection type, regular size and 合成绝缘子 Composite insulator / electrical equipment
characteristics are as follows: FXBW4-500/160-WQ
FXBW4-330/160-WQ
FXBW4-220/100-WQ
FXBW4-220/160-WQ
FXBW4-110/70-WQ
FXBW4-110/100-WQ
FXBW4-110/120-WQ
FXBW4-66/70-WQ
FXBW4-66/100-WQ
FXBW4-35/70-WQ
FXBW4-35/100-WQ
FXBW4-20/70-WQ
FXBW4-20/100-WQ
FXBW4-10/70-WQ
FXBW4-10/100-WQ
额定机械 雷电冲击耐受电 1min 工频耐受电
额定电 结构高度 绝缘距离 最小公称爬
压 ( 峰值 )(kV)
压 ( 有效值 )(kV)
产品型号 压 (kV) 负荷 (kN) (mm) (mm) 电距离 (mm)The Lightning impulse 1min power frequency
Rated
Product number Rated machinery Structural Insulation minimum nominal climb withstand electric withstand electric
Voltage height distance Electrical distance
load Voltage (peak) Pressure (RMS)
FXBW4-10/70-WQ 10 70 380 200 480 95 45
FXBW4-10/100-WQ 10 100 420 200 480 95 45
FXBW4-20/70-WQ 22 70 460 280 744 125 65
FXBW4-20/100-WQ 22 100 500 280 744 125 65
FXBW4-35/70-WQ 35 70 640 450 1200 230 95
FXBW4-35/100-WQ 35 100 680 450 1200 230 95
FXBW4-66/70-WQ 66 70 900 720 2250 410 185
FXBW4-66/100-WQ 66 100 940 720 2250 410 185
FXBW4-110/70-WQ 110 70 1200 1000 3150 550 230
FXBW4-110/100-WQ 110 100 1240 1000 3150 550 230
FXBW4-110/100-WQ1 110 100 1280 1040 3200 560 240
FXBW4-110/100-WQ3 110 100 1360 1120 3400 580 250
FXBW4-110/100-WQ5 110 100 1440 1200 3600 600 260
FXBW4-110/120-WQ 110 120 1240 1000 3150 550 230
FXBW4-220/100-WQ 220 100 2210 1960 6300 1000 395
FXBW4-220/160-WQ 220 160 2240 1960 5900 1000 395
FXBW4-330/160-WQ 330 160 2990 2700 8300 1425 570
FXBW4-500/160-WQ 500 160 4450 4150 12900 2250 740
