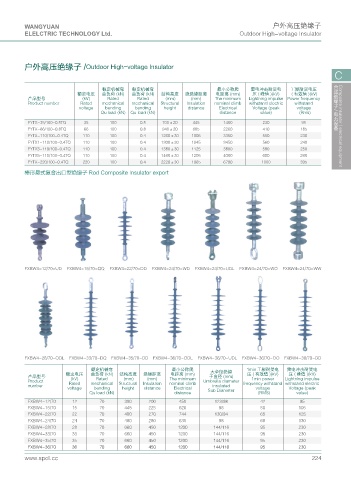

户外高压绝缘子 /Outdoor High-voltage Insulator
C

额定机械弯 额定机械弯 最小公称爬 雷电冲击耐受电 工频耐受电压
额定电压 曲负荷 (kN) 曲负荷 (kN) 结构高度 绝绝缘距离 电距离 (mm) 压 ( 峰值 )(kV) ( 有效值 )(kV)
产品型号 (kV) Rated Rated (mm) (mm) The minimum Lightning impulse Power frequency
Product number Rated mechanical mechanical Structural Insulation nominal climb withstand electric withstand
voltage bending bending height distance Electrical Voltage (peak voltage / 电力设备
Qu load (kN) Qu load (kN) distance value) (Rms)
FYTX-35/100-0.8TQ 35 100 0.8 700±20 445 1400 230 95
FYTX-66/100-0.8TQ 66 100 0.8 940±20 685 2260 410 185 合成绝缘子 Composite insulator / electrical equipment
FYTX-110/100-0.4TQ 110 100 0.4 1260±30 1005 3350 550 230
FYTX1-110/100-0.4TQ 110 100 0.4 1300±30 1045 3450 560 240
FYTX3-110/100-0.4TQ 110 100 0.4 1380±30 1125 3800 580 250
FYTX5-110/100-0.4TQ 110 100 0.4 1460±30 1205 4000 600 260
FYTX-220/100-0.4TQ 220 100 0.4 2220±30 1965 6790 1000 395
棒形悬式复合出口型绝缘子 Rod Composite Insulator export

FXBW4-12/70-UD FXBW4-15/70-QQ FXBW4-22/70-DD FXBW4-24/70-WD FXBW4-24/70-UDL FXBW4-24/70-WO FXBW4-24/70-WW

FXBW4-28/70-ODL FXBW4-33/70-DQ FXBW4-35/70-DD FXBW4-36/70-ODL FXBW4-36/70-UDL FXBW4-36/70-OO FXBW4-36/70-DD

额定机械弯 最小公称爬 1min 工频耐受电 雷电冲击耐受电
额定电压 曲负荷 (kN) 结构高度 绝缘距离 电距离 (mm) 大伞径绝缘 压 ( 有效值 )(kV) 压 ( 峰值 )(kV)
产品型号 (kV) Rated (mm) (mm) The minimum 子直径 (mm) 1min power Lightning impulse
Product Rated mechanical Structural Insulation nominal climb Umbrella diameter frequency withstand withstand electric
number insulated
voltage bending height distance Electrical Sub Diameter voltage Voltage (peak
Qu load (kN) distance (RMS) value)
FXBW4-12/70 12 70 390 200 450 123/98 42 95
FXBW4-15/70 15 70 445 225 620 98 50 105
FXBW4-22/70 22 70 480 270 744 130/94 65 125
FXBW4-24/70 24 70 480 280 635 98 68 130
FXBW4-28/70 28 70 660 450 1200 144/116 95 230
FXBW4-33/70 33 70 660 450 1200 144/116 95 230
FXBW4-35/70 35 70 660 450 1200 144/116 95 230
FXBW4-36/70 36 70 660 450 1200 144/116 95 230
