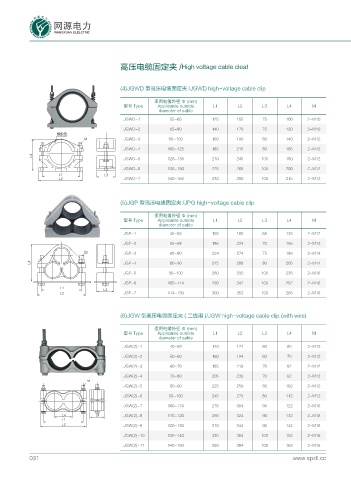

高压电缆固定夹 /High voltage cable cleat

(4)JGWD 型高压电缆固定夹 /JGWD high-voltage cable clip

适用电缆外径 Φ (mm)
型号 Type Applicable outside L1 L2 L3 L4 M
diameter of cable
JGWD-1 55-65 125 155 75 100 2-M10
JGWD-2 65-80 140 170 75 120 2-M10
඼ᑬޘ
/ JGWD-3 80-100 160 190 80 140 2-M12
JGWD-4 100-125 185 215 80 165 2-M12
.
JGWD-5 126-136 210 245 100 180 2-M12
JGWD-6 136-150 225 265 100 200 2-M12
. .
. JGWD-7 140-166 230 280 100 215 2-M12

(5)JGP 型高压电缆固定夹 /JPG high-voltage cable clip

适用电缆外径 Φ (mm)
型号 Type Applicable outside L1 L2 L3 L4 M
diameter of cable
JGP-1 45-55 150 180 65 135 2-M12
JGP-2 55-68 186 224 70 156 2-M12
/ JGP-3 68-80 224 274 75 186 2-M14
. JGP-4 80-90 245 288 80 205 2-M14
JGP-5 90-100 280 332 100 235 2-M16
JGP-6 100-114 290 342 100 252 2-M16
.
.
. JGP-7 114-130 300 352 100 265 2-M16

(6)JGW 型高压电缆固定夹 ( 二线用 )/JGW high-voltage cable clip (with wire)

适用电缆外径 Φ (mm)
型号 Type Applicable outside L1 L2 L3 L4 M
diameter of cable
JGW(2)-1 40-50 140 174 60 60 2-M12
JGW(2)-2 50-60 160 194 60 70 2-M12
JGW(2)-3 60-70 185 219 70 82 2-M12
JGW(2)-4 70-80 205 239 70 92 2-M12
/
JGW(2)-5 80-90 225 259 80 102 2-M12
JGW(2)-6 90-100 245 279 80 112 2-M12
JGW(2)-7 100-110 270 304 90 122 2-M16
. . JGW(2)-8 110-120 290 324 90 132 2-M16
.
. JGW(2)-9 120-130 310 344 90 142 2-M16
JGW(2)-10 130-140 330 364 100 152 2-M16
JGW(2)-11 140-150 350 384 100 162 2-M16

031 www.spdl.cc
