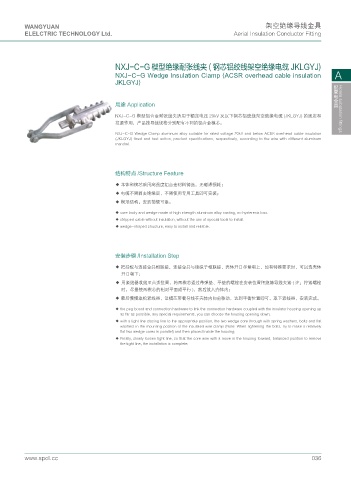

WANGYUAN 架空绝缘导线金具
ELELCTRIC TECHNOLOGY Ltd. Aerial Insulation Conductor Fitting

NXJ-C-G 楔型绝缘耐张线夹 ( 钢芯铝绞线架空绝缘电缆 JKLGYJ)

NXJ-C-G Wedge Insulation Clamp (ACSR overhead cable insulation A
JKLGYJ)

用途 Application 配变电金具 Hotels substation fittings
NXJ-C-G 楔型铝合金耐张线夹适用于额定电压 20kV 及以下钢芯铝绞线架空绝缘电缆 (JKLGYJ) 的固定和
拉紧作用，产品按导线规格分别配有不同的铝合金模芯。
NXJ-C-G Wedge Clamp aluminum alloy suitable for rated voltage 20kV and below ACSR overhead cable insulation
(JKLGYJ) fixed and taut action, product specifications, respectively, according to the wire with different aluminum
mandrel.

结构特点 /Structure Feature
◆ 本体和楔芯采用高强度铝合金材料铸造，无磁滞损耗；
◆ 电缆不需剥去绝缘层，不需使用专用工具即可安装；
◆ 楔形结构，安装简便可靠。
◆ core body and wedge made of high strength aluminum alloy casting, no hysteresis loss.
◆ stripped cable without insulation, without the use of special tools to install.
◆ wedge-shaped structure, easy to install and reliable.

安装步骤 /Installation Step

◆ 把挂板与连接金具相联接，连接金具与绝缘子相联接，壳体开口尽量朝上，如有特殊要求时，可以选壳体
开口朝下；
◆ 用紧线器收线至合适位置，将两楔芯通过带弹垫、平垫的螺栓在安装位置把绝缘导线夹紧 ( 注：拧紧螺栓
时，尽量使两楔芯的相对平面成平行 )，然后放入壳体内；
◆ 最后慢慢放松紧线器，让模芯带着导线在壳体内向前移动，达到平衡位置即可，取下紧线器，安装完成。
◆ the peg board and connection hardware to link the connection hardware coupled with the insulator housing opening up
as far as possible, any special requirements, you can choose the housing opening down;
◆ with a tight line closing line to the appropriate position, the two wedge core through with spring washers, bolts and flat
washers in the mounting position of the insulated wire clamp (Note: When tightening the bolts, try to make a relatively
flat two wedge cores in parallel) and then placed inside the housing;
◆ Finally, slowly loosen tight line, so that the core wire with a move in the housing forward, balanced position to remove
the tight line, the installation is complete.

www.spdl.cc 036
