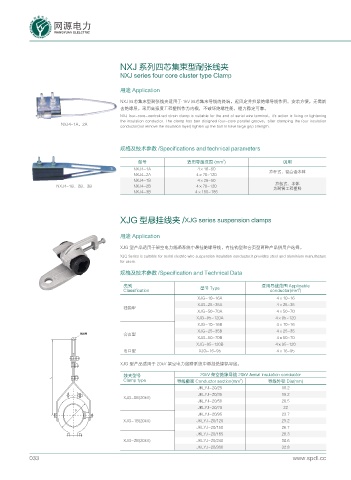

NXJ 系列四芯集束型耐张线夹

NXJ series four core cluster type Clamp

用途 Application
NXJ 四芯集束型耐张线夹适用于 1kV 四芯集束导线的终端，起固定并拉紧绝缘导线作用，安装方便，无需剥
去绝缘层。采用高强度工程塑料作为内楔，不破坏绝缘性能，握力稳定可靠。
NXJ four-core-centralized strain clamp is suitable for the end of aerial wire terminal，it's action is fixing or tightening
the insulation conductor. The clamp has ben disigned four-core parallel groove，after clamping the four insulation
NXJ4-1A、2A
conductor(not remove the insulation layer) tighten up the bolt to have large grip strength.

规格及技术参数 /Specifications and technical parameters

2
型号 适用导线范围 (mm ) 说明
NXJ4-1A 4×16~50 拉杆式、铝合金本体
NXJ4-2A 4×70~120
NXJ4-1B 4×25~50
拉板式、本体
NXJ4-1B、2B、3B NXJ4-2B 4×70~120 为耐候工程塑料
NXJ4-3B 4×150~185

XJG 型悬挂线夹 /XJG series suspension clamps

用途 Application

XJG 型产品适用于架空电力线路系统中悬挂绝缘导线，有挂钩型和合页型两种产品供用户选择。
XJG Series is suitable for aerial electric wire suspension insulation conductor.it provides steel and aluminium manufacture
for users.
规格及技术参数 /Specification and Technical Data

类别 型号 Type 适用导线范围 Applicable
2
Classification conductor(mm )
XJG-10~16A 4×10~16
XJG-25~35A 4×25~35
挂钩型
XJG-50~70A 4×50~70
XJG-95~120A 4×95~120
XJG-10~16B 4×10~16
XJG-25~35B 4×25~35
ᧁτᎀ 合页型
XJG-50~70B 4×50~70
XJG-95~120B 4×95~120
出口型 XJG-16~95 4×16~95

XJG 型产品适用于 20kV 架空电力线路系统中悬挂绝缘铝导线。
线夹型号 20kV 架空绝缘导线 20kV Aerial insulation conductor
.
Clamp type 导线截面 Conductor section(mm ) 导线外径 Dia(mm)
2
JKLYJ-20/25 18.2
JKLYJ-20/35 19.2
XJG-0B(20kV)
JKLYJ-20/50 20.5
JKLYJ-20/70 22
&
JKLYJ-20/95 23.7
XJG-1B(20kV) JKLYJ-20/120 25.2
JKLYJ-20/150 26.7
JKLYJ-20/185 28.3
XJG-2B(20kV) JKLYJ-20/240 30.6
JKLYJ-20/300 32.8
