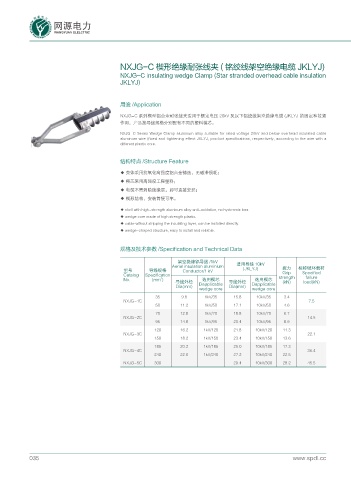

NXJG-C 楔形绝缘耐张线夹 ( 铭绞线架空绝缘电缆 JKLYJ)

NXJG-C insulating wedge Clamp (Star stranded overhead cable insulation
JKLYJ)

用途 /Application
NXJG-C 系列楔型铝合金耐张线夹适用于额定电压 20kV 及以下铝绞线架空绝缘电缆 (JKLYJ 的固定和拉紧
作用，产品按导线规格分别配有不同的塑料模芯。
NXJG-C Series Wedge Clamp aluminum alloy suitable for rated voltage 20kV and below overhead insulated cable
aluminum wire (fixed and tightening effect JKLYJ, product specifications, respectively, according to the wire with a
different plastic core.

结构特点 /Structure Feature

◆ 壳体采用抗氧化高强度铝合金铸造，无磁滞损耗；
◆ 楔芯采用高强度工程塑料；
◆ 电缆不需剥除绝缘层，即可直接安装；
◆ 楔形结构，安装简便可靠。

◆ shell with high-strength aluminum alloy anti-oxidation, no hysteresis loss.
◆ wedge core made of high strength plastic.
◆ cable without stripping the insulating layer, can be installed directly.
◆ wedge-shaped structure, easy to install and reliable.

规格及技术参数 /Specification and Technical Data

架空绝缘铝导线 /1kV
Aerial insulation aluminium 适用导线 10kV 握力 标称破坏载荷
型号 导线规格 Conductor/1 kV (JKLYJ) Grip Specified
Catalog Specification strength failure
2
No. (mm ) 选用楔芯 选用楔芯
导线外径 Dapplicable 导线外径 Dapplicable (kN) load(kN)
Dia(mm) Dia(mm)
wedge core wedge core
35 9.8 1kV/35 15.8 10kV/35 3.4
NXJG-1C 7.5
50 11.2 1kV/50 17.1 10kV/50 4.6
70 12.8 1kV/70 18.8 10kV/70 6.7
NXJG-2C 14.5
95 14.8 1kV/95 20.4 10kV/95 8.9
120 16.2 1kV/120 21.8 10kV/120 11.3
NXJG-3C 22.1
150 18.2 1kV/150 23.4 10kV/150 13.6
185 20.2 1kV/185 25.0 10kV/185 17.3
NXJG-4C 36.4
240 22.6 1kV/240 27.2 10kV/240 22.5
NXJG-5C 300 29.4 10kV/300 28.2 45.5
