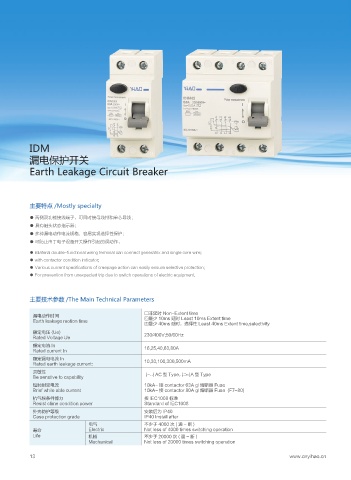

IDM

漏电保护开关

Earth Leakage Circuit Breaker

主要特点 /Mostly specialty

● 两侧双功能接线端子，可同时接母线排和单芯导线；
● 具有触头状态指示器；
● 多种漏电动作电流规格，容易实现选择性保护；
● 可防止由于电子设备开关操作引起的误动作。

● Bilateral double-functional wiring terminal can connect generatrix and single core wire;
● with contactor condition indicator;
● Various current specifications of creepage action can easily ensure selective protection;
● For prevention from unexpected trip due to switch operations of electric equipment.

主要技术参数 /The Main Technical Parameters

□非延时 Non-Extent time
漏电动作时间
G
Earth leakage motion time □最少 10ms 延时 Least 10ms Extent time
□最少 40ms 延时，选择性 Least 40ms Extent time,selectivity
S
额定电压 (Ue) 230/400V;50/60Hz
Rated Voltage Ue
额定电流 In
Rated current In 16,25,40,63,80A
额定漏电电流 In 10,30,100,300,500mA
Rated earth leakage current:
灵敏性 AC 型 Type， A 型 Type
Be senstive to capability
短时耐受电流 10kA- 接 contactor 63A gl 熔断器 Fuse
Brief while able current 10kA- 接 contactor 80A gl 熔断器 Fuse (F7-80)
抗气候条件能力 按 IEC1008 标准
Resist clime condition power Standard of IEC1008
外壳防护等级 安装后为 IP40
Case protection grade IP40 Install after
电气 不少于4000次(通-断)
寿命 Electric Not less of 4000 times switching operation
Life 机械 不少于20000次(通-断)
Mechanical Not less of 20000 times switching operation
