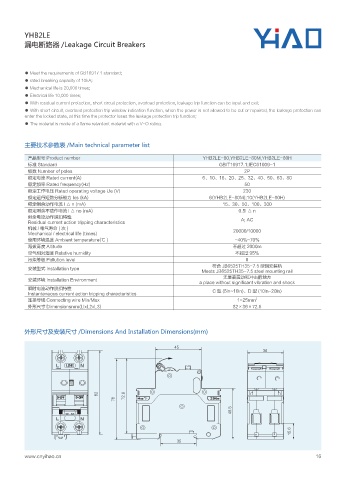

YHB2LE
漏电断路器 /Leakage Circuit Breakers

● Meet the requirements of GB16917.1 standard;
● rated breaking capacity of 10kA;
● Mechanical life is 20,000 times;
● Electrical life 10,000 times;
● With residual current protection, short circuit protection, overload protection, leakage trip function can be input and exit;
● With short circuit, overload protection trip window indication function, when the power is not allowed to be cut or repaired, the leakage protection can
enter the locked state, at this time the protector loses the leakage protection trip function;
● The material is made of a flame retardant material with a V-O rating.

主要技术参数表 /Main technical parameter list

产品型号 Product number YHB2LE-80,YHB2LE-80M,YHB2LE-80H
标准 Standard GB/T16917.1;IEC61009-1
极数 Number of poles 2P
额定电流 Rated current(A) 6、10、16、20、25、32、40、50、63、80
额定频率 Rated frequency(Hz) 50
额定工作电压 Rated operating voltage Ue (V) 230
额定运行短路分断能力 Ics (kA) 6(YHB2LE-80M);10(YHB2LE-80H)
额定剩余动作电流 I △ n (mA) 15、30、50、100、300
额定剩余不动作电流 I △ no (mA) 0.5I △ n
剩余电流动作脱扣特性 A; AC
Residual current action tripping characteristics
机械/电气寿命(次) 20000/10000
Mechanical / electrical life (times)
使用环境温度 Ambient temperature(℃ ) -40%~70%
海拔高度 Altitude 不超过 2000m
空气相对湿度 Relative humidity 不超过 95%
污染等级 Pollution level II
符合 JB6525TH35-7.5 型钢安装轨
安装型式 Installation type
Meets JB6525TH35-7.5 steel mounting rail
无显著震动和冲击的地方
安装环境 Installation Environment
a place without significant vibration and shock
瞬时电流动作脱扣特性
Instantaneous current action tripping characteristics C 型 (5ln~10ln)、D 型 (10ln-20ln)
连接导线 Connecting wire Min/Max 1-25mm 2
外形尺寸 Dimensionsmm(LlxL2xL3) 82×36×72.6

外形尺寸及安装尺寸 /Dimensions And Installation Dimensions(mm)
