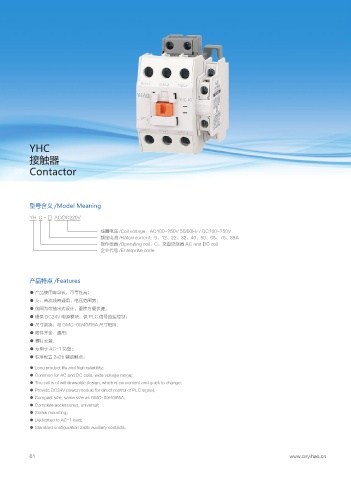

Page 4 - 乐清市一昊电气有限公司

YHC

接触器

Contactor

型号含义 /Model Meaning

YH C - □ AC/DC220V

线圈电压 /Coil voltage：AC100~250V 50/60Hz / DC100~250V
额定电流 /Rated current：9、12、22、32、40、50、65、75、85A
操作线圈 /Operating coil：C：交直流线圈 AC and DC coil
企业代号 /Enterprise code

产品特点 /Features
● 产品使用寿命长，可靠性高；
● 交、直流线圈通用，电压范围宽；
● 线圈为可抽出式设计，更换方便快捷；
● 提供 DC24V 电源模块，供 PLC 信号直接控制；
● 尺寸紧凑，与 GMC-09/40/65A 尺寸相同；
● 附件齐全、通用；
● 螺钉安装；
● 专用于 AC-1 负载；
● 标准配置 2a2b 辅助触点。
● Long product life and high reliability;
● Common for AC and DC coils, wide voltage range;
● The coil is of withdrawable design, which is convenient and quick to change;
● Provide DC24V power module for direct control of PLC signal;
● Compact size, same size as GMC-09/40/65A;
● Complete accessories, universal;
● Screw mounting;
● Dedicated to AC-1 load;
● Standard configuration 2a2b auxiliary contacts.

01 www.cnyihao.cn
