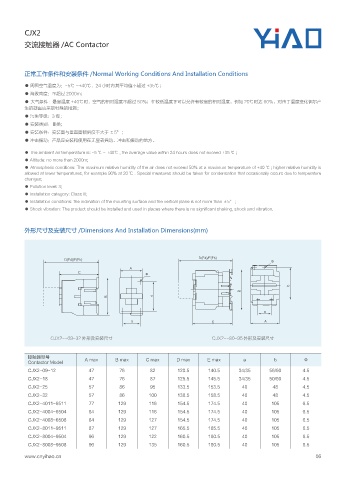

CJX2

交流接触器 /AC Contactor

正常工作条件和安装条件 /Normal Working Conditions And Installation Conditions

● 周围空气温度为：-5℃ ~+40℃，24 小时内其平均值不超过 +35℃；
● 海拔高度：不超过 2000m；
● 大气条件：最高温度 +40℃时，空气的相对湿度不超过 50%；在较低温度下可以允许有较高的相对湿度，例如 20℃时达 90%。对由于温度变化偶尔产
生的凝露应采取特殊的措施；
● 污染等级：3 级；
● 安装类别：Ⅲ类；
● 安装条件：安装面与垂直面倾斜度不大于 ±5°；
● 冲击振动：产品应安装和使用在无显著摇动、冲击和振动的地方。
● The ambient air temperature is: -5 ℃ ~ +40℃ , the average value within 24 hours does not exceed +35 ℃ ;
● Altitude: no more than 2000m;
● Atmospheric conditions: The maximum relative humidity of the air does not exceed 50% at a maximum temperature of +40 ℃ ; higher relative humidity is
allowed at lower temperatures, for example 90% at 20 ℃ . Special measures should be taken for condensation that occasionally occurs due to temperature
changes;
● Pollution level: 3;
● Installation category: Class III;
● Installation conditions: the inclination of the mounting surface and the vertical plane is not more than ±5° ;
● Shock vibration: The product should be installed and used in places where there is no significant shaking, shock and vibration.

外形尺寸及安装尺寸 /Dimensions And Installation Dimensions(mm)

% ' & '
% ' & '
œ
"
$ œ
C
#
# C
B

B $ "

CJX2--09~32 外形及安装尺寸 CJX2--80~95 外形及安装尺寸

接触器型号
Contactor Model A max B max C max D max E max a b Φ
CJX2-09~12 47 76 82 120.5 140.5 34/35 56/60 4.5
CJX2-18 47 76 87 125.5 145.5 34/35 50/60 4.5
CJX2-25 57 86 95 133.5 153.5 40 48 4.5
CJX2-32 57 86 100 138.5 158.5 40 48 4.5
CJX2-4011~6511 77 129 116 154.5 174.5 40 105 6.5
CJX2-4004~6504 84 129 116 154.5 174.5 40 105 6.5
CJX2-4008~6508 84 129 127 154.5 174.5 40 105 6.5
CJX2-8011~9511 87 129 127 165.5 185.5 40 105 6.5
CJX2-8004~9504 96 129 122 160.5 180.5 40 105 6.5
CJX2-8008~9508 96 129 135 160.5 180.5 40 105 6.5
