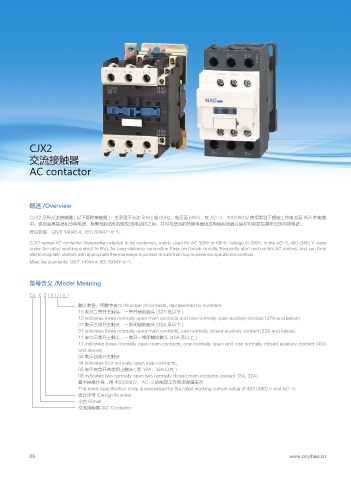

CJX2

交流接触器

AC contactor

概述 /Overview

CJX2 系列交流接触器 ( 以下简称接触器 )，主要用于交流 50Hz 或 60Hz，电压至 690V，在 AC-3、400(380)V 使用类别下额定工作电流至 95A 的电路
中，供远距离接通和分断电路、频繁地起动和控制交流电动机之用，并可与适当的热继电器组成电磁起动器以保护可能发生操作过负荷的电路。
符合标准：GB/T 14048.4、IEC 60947-4-1。

CJX2 series AC contactor (hereinafter referred to as contactor), mainly used for AC 50Hz or 60Hz, voltage to 690V, in the AC-3, 400 (380) V class
under the rated working current to 95A, for long-distance connection Pass and break circuits, frequently start and control AC motors, and can form
electromagnetic starters with appropriate thermal relays to protect circuits that may experience operational overload.
Meet the standards: GB/T 14048.4, IEC 60947-4-1.

型号含义 /Model Meaning

CJ X 2 □□ / □□
触头数量，用数字表示 /Number of contacts, represented by numbers
10 表示三常开主触头、一常开辅助触头 (32A 及以下 )
10 indicates three normally open main contacts and one normally open auxiliary contact (32A and below)
01 表示三常开主触头、一常闭辅助触头 (32A 及以下 )
01 indicates three normally open main contacts, one normally closed auxiliary contact (32A and below)
11 表示三常开主触头、一常开一常闭辅助触头 (40A 及以上 )
11 indicates three normally open main contacts, one normally open and one normally closed auxiliary contact (40A
and above)
04 表示四常开主触头
04 indicates four normally open main contacts,
08 表示两常开两常闭主触头 ( 除 18A、32A 以外 )
08 indicates two normally open two normally closed main contacts (except 18A, 32A)
基本规格代号，用 400(380)V、AC-3 的额定工作电流数值表示
The basic specification code is expressed by the rated working current value of 400 (380) V and AC-3.
设计序号 /Design Number
小型 /Small
交流接触器 /AC Contactor
