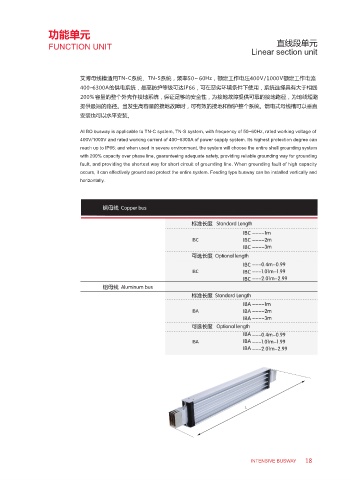

功能单元

FUNCTION UNIT 直线段单元
Linear section unit

艾博母线槽适用TN-C系统、TN-S系统，频率50~ 60Hz，额定工作电压400V/1000V额定工作电流
400~6300A的供电系统，最高防护等级可达IP66，可在恶劣环境条件下使用，系统选择具有大于相线
200% 容量的整个外壳作接地系统，保证足够的安全性，为接地故障提供可靠的接地路径，为地线短路
提供最短的路径。当发生高容量的接地故障时，可有效的接地和保护整个系统。馈电式母线槽可以垂直
安装也可以水平安装。

AI BO busway is applicable to TN-C system, TN-S system, with frequency of 50~60Hz, rated working voltage of
400V/1000V and rated working current of 400~6300A of power supply system. Its highest protection degree can
reach up to IP66; and when used in severe environment, the system will choose the entire shell grounding system
with 200% capacity over phase line, guaranteeing adequate safety, providing reliable grounding way for grounding
fault, and providing the shortest way for short circuit of grounding line. When grounding fault of high capacity
occurs, it can effectively ground and protect the entire system. Feeding type busway can be installed vertically and
horizontally.

IBC
IBC IBC
IBC

IBC
IBC IBC
IBC

IBA
IBA IBA
IBA

IBA
IBA IBA
IBA

INTENSIVE BUSWAY 18
