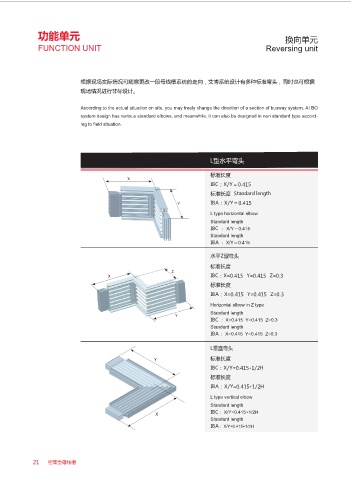

Page 22 - 艾博母线有限公司

功能单元 换向单元

FUNCTION UNIT Reversing unit

根据现场实际情况可随意更改一段母线槽系统的走向，艾博系统设计有多种标准弯头，同时也可根据
现场情况进行非标设计。

According to the actual situation on site, you may freely change the direction of a section of busway system. AI BO
system design has various standard elbows, and meanwhile, it can also be designed in non standard type accord-
ing to field situation.

L型水平弯头

标准长度
IBC：X/Y＝0.415
标准长度 Standard length
IBA：X/Y＝0.415
L type horizontal elbow
Standard length
IBC ğX/YĢ0.415
Standard length
IBA ğX/YĢ0.415
水平Z型弯头
标准长度
IBC：X=0.415 Y=0.415 Z=0.3
标准长度
IBA：X=0.415 Y=0.415 Z=0.3

Horizontal elbow in Z type
Standard length
IBC ğX=0.415 Y=0.415 Z=0.3
Standard length
IBA ğX=0.415 Y=0.415 Z=0.3

L垂直弯头
标准长度
IBC：X/Y=0.415+1/2H
标准长度
IBA：X/Y=0.415+1/2H

L type vertical elbow
Standard length
IBC ğX/Y=0.415+1/2H
Standard length
IBA ğX/Y=0.415+1/2H

21 密集型母线槽
