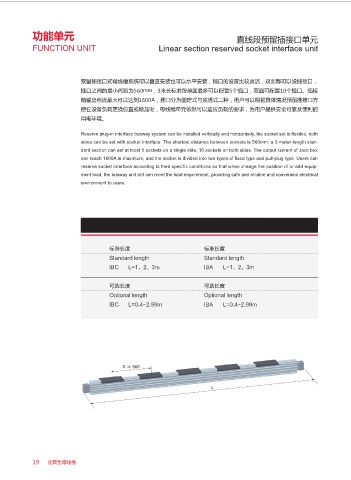

功能单元 直线段预留插接口单元

FUNCTION UNIT Linear section reserved socket interface unit

预留插接口式母线槽系统可以垂直安装也可以水平安装，插口的设置比较灵活，双面都可以设插接口，
插口之间的最小间距为560mm，3米长标准段单面最多可以配置5个插口，双面可配置10个插口。插接
箱输出电流最大可以达到1600A，插口分为固定式与拔插式二种，用户可以根据具体情况预留插接口方
便在设备负载更换位置或增加时，母线槽单元依然可以适应负载的要求，为用户提供安全可靠及便利的
用电环境。

Reserve plug-in interface busway system can be installed vertically and horizontally, the socket set is flexible, both
sides can be set with socket interface. The shortest distance between sockets is 560mm; a 3-meter-length stan-
dard section can set at most 5 sockets on a single side, 10 sockets on both sides. The output current of Jack box
can reach 1600A in maximum, and the socket is divided into two types of fixed type and pull-plug type. Users can
reserve socket interface according to their specific conditions so that when change the position of or add equip-
ment load, the busway unit still can meet the load requirement, providing safe and reliable and convenient electrical
environment to users.

标准长度 标准长度
Standard length Standard length
IBC L=1、2、3m IBA L=1、2、3m

可选长度 可选长度
Optional length Optional length
IBC L=0.4~2.99m IBA L=0.4~2.99m
