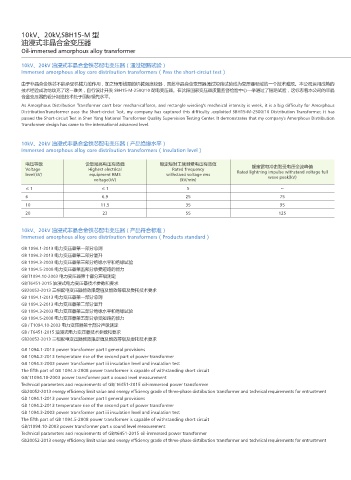

10kV、20kV,SBH15-M 型
油浸式非晶合金变压器
Oil-immersed amorphous alloy transformer

10kV、20kV 油浸式非晶合金铁芯配电变压器（通过短路试验）
Immersed amorphous alloy core distribution transformers（Pass the short-circiut test）
由于非晶合金铁芯不能承受机械力的作用，加之矩形线圈的机械强度较弱，因此非晶合金变压器通过短路试验成为变压器领域的一个技术难题。本公司运用成熟的
技术经验成功地攻克了这一难关，自行设计开发 SBH15-M-2500/10 配电变压器。在沈阳国家变压器质量监督检验中心一举通过了短路试验，这标志着本公司的非晶
合金变压器的设计制造技术处于国际领先水平。
As Amorphous Distribution Transformer can't bear mechanicalforce, and rectangle winding's mechnical intensity is week, it is a big difficulty for Amorphous
DistributionTransformer pass the Short-circiut Test, my company has captured this difficulty .exploited SBH15-M-2500/10 Distribution Transformer, it has
passed the Short-circiut Test in Shen Yang National Transformer Quality Supervision Testing Center. It demonstrates that my company's Amorphous Distribution
Transformer design has came to the international advanced level.

10kV、20kV 油浸式非晶合金铁芯配电变压器（产品绝缘水平）
Immersed amorphous alloy core distribution transformers（Insulation level）

电压等级 设备最高电压有效值 额定短时工频耐受电压有效值 额定雷电冲击耐受电压全波峰值
Voltage Highest electrical Rated frequency
level(kV) equipment RMS withstand voltage rms Rated lightning impulse withstand voltage full
voltage(kV) (kV/min) wave peak(kV)
≤1 ≤1 5 --
6 6.9 25 75
10 11.5 35 95
20 23 55 125

10kV、20kV 油浸式非晶合金铁芯配电变压器（产品符合标准）
Immersed amorphous alloy core distribution transformers（Products standard）

GB 1094.1-2013 电力变压器第一部分总则
GB 1094.2-2013 电力变压器第二部分温升
GB 1094.3-2003 电力变压器第三部分绝缘水平和绝缘试验
GB 1094.5-2008 电力变压器第五部分承受短路的能力
GB/T1094.10-2003 电力变压器第十部分声级测定
GB/T6451-2015 油浸式电力变压器技术参数和要求
GB20052-2013 三相配电变压器能效限定值及能效等级及委托技术要求
GB 1094.1-2013 电力变压器第一部分总则
GB 1094.2-2013 电力变压器第二部分温升
GB 1094.3-2003 电力变压器第三部分绝缘水平和绝缘试验
GB 1094.5-2008 电力变压器第五部分承受短路的能力
GB / T1094.10-2003 电力变压器第十部分声级测定
GB / T6451-2015 油浸式电力变压器技术参数和要求
GB20052-2013 三相配电变压器能效限定值及能效等级及委托技术要求
GB 1094.1-2013 power transformer part I general provisions
GB 1094.2-2013 temperature rise of the second part of power transformer
GB 1094.3-2003 power transformer part iii insulation level and insulation test
The fifth part of GB 1094.5-2008 power transformer is capable of withstanding short circuit
GB/ t1094.10-2003 power transformer part x sound level measurement
Technical parameters and requirements of GB/ t6451-2015 oil-immersed power transformer
Gb20052-2013 energy efficiency limit value and energy efficiency grade of three-phase distribution transformer and technical requirements for entrustment
GB 1094.1-2013 power transformer part I general provisions
GB 1094.2-2013 temperature rise of the second part of power transformer
GB 1094.3-2003 power transformer part iii insulation level and insulation test
The fifth part of GB 1094.5-2008 power transformer is capable of withstanding short circuit
GB/t1094.10-2003 power transformer part x sound level measurement
Technical parameters and requirements of GB/t6451-2015 oil-immersed power transformer 19
Gb20052-2013 energy efficiency limit value and energy efficiency grade of three-phase distribution transformer and technical requirements for entrustment
