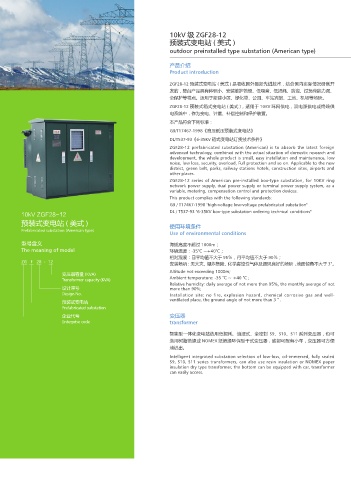

10kV 级 ZGF28-12
预装式变电站 ( 美式 )
outdoor preinstalled type substation (American type)

产品介绍
Product introduction
ZGF28-12 预装式变电站 ( 美式 ) 是吸收国外最新先进技术，结合国内实际情况研制开
发的，整台产品具有体积小、安装维护简便、低噪音、低损耗、防盗、过负荷能力强、
全保护等特点。适用于新建小区、绿化带、公园、车站宾馆、工地、机场等场所。
ZGF28-12 预装式箱式变电站 ( 美式 )，适用于 10KV 环网供电，双电源供电或终端供
电系统中，作为变电、计量、补偿控制和保护装置。
本产品符合下列标准：
GB/T17467-1998《高压低压预装式变电站》
DL/T537-93《6-35KV 箱式变电站订货技术条件》
ZGF28-12 prefabricated substation (American) is to absorb the latest foreign
advanced technology, combined with the actual situation of domestic research and
development, the whole product is small, easy installation and maintenance, low
noise, low loss, security, overload, Full protection and so on. Applicable to the new
district, green belt, parks, railway stations hotels, construction sites, airports and
other places.
ZGF28-12 series of American pre-installed box-type substation, for 10KV ring
network power supply, dual power supply or terminal power supply system, as a
variable, metering, compensation control and protection devices.
This product complies with the following standards:
GB / T17467-1998 "high-voltage low-voltage prefabricated substation"
DL / T537-93 "6-35KV box-type substation ordering technical conditions"
10kV ZGF28-12
预装式变电站 ( 美式 ) 使用环境条件
Prefabricated substation (American type)
Use of environmental conditions
型号含义 海拔高度不超过 1000m；
The meaning of model 环境温度：-35℃ ~+40℃；
相对湿度：日平均值不大于 95％，月平均值不大于 90％；
ZG F 28 - 12 安装场所：无火灾、爆炸危险、化学腐蚀性气体及通风良好的场所，地面倾角不大于 3°。
Altitude not exceeding 1000m;
变压器容量 (KVA)
Transformer capacity (KVA) Ambient temperature: -35 ℃ ~ +40 ℃ ;
Relative humidity: daily average of not more than 95%, the monthly average of not
设计序号 more than 90%;
Design No. Installation site: no fire, explosion hazard, chemical corrosive gas and well-
预装式变电站 ventilated place, the ground angle of not more than 3 ° .
Prefabricated substation
企业代号 变压器
Enterprise code transformer

智能型一体化变电站选用低损耗、油浸式、全密封 S9、S10、S11 系列变压器，也可
选用树脂绝缘或 NOMEX 纸绝缘环保型干式变压器，底部可配有小车，变压器可方便
地进出。
Intelligent integrated substation selection of low-loss, oil-immersed, fully sealed
S9, S10, S11 series transformers, can also use resin insulation or NOMEX paper
insulation dry type transformer, the bottom can be equipped with car, transformer
can easily access.
