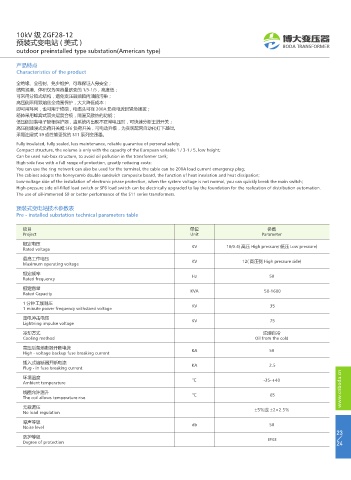

10kV 级 ZGF28-12 10kV 级 ZGF28-12 博大变压器
预装式变电站 ( 美式 ) 预装式变电站 ( 美式 ) BODA TRANSFORMER
outdoor preinstalled type substation(American type)

产品特点
Characteristics of the product
全绝缘、全密封、免少维护、可靠保证人身安全；
结构紧凑、体积仅为同容量欧变的 1/3-1/5，高度低；
可采用分箱式结构，避免变压器油箱内油的污染；
高压侧采用双熔丝全范围保护，大大降低成本：
即可用环网，也可用于终端，电缆头可在 200A 负荷电流时紧急插拔；
箱体采用蜂窝式双夹层复合板，隔温又散热的功能；
低压侧加装电子缺相保护器，当系统内出现不正常电压时，可快速分断主进开关；
高压侧油浸式负荷开关或 SF6 负荷开关，可电动升级，为实现配网自动化打下基础。
采用油浸式 S9 或性能更优的 S11 系列变压器。
Fully insulated, fully sealed, less maintenance, reliable guarantee of personal safety;
Compact structure, the volume is only with the capacity of the European variable 1 / 3-1 / 5, low height;
Can be used sub-box structure, to avoid oil pollution in the transformer tank;
High-side fuse with a full range of protection, greatly reducing costs:
You can use the ring network can also be used for the terminal, the cable can be 200A load current emergency plug;
The cabinet adopts the honeycomb double sandwich composite board, the function of heat insulation and heat dissipation;
Low-voltage side of the installation of electronic phase protection, when the system voltage is not normal, you can quickly break the main switch;
High-pressure side oil-filled load switch or SF6 load switch can be electrically upgraded to lay the foundation for the realization of distribution automation.
The use of oil-immersed S9 or better performance of the S11 series transformers.

预装式变电站技术参数表
Pre - installed substation technical parameters table
项目 单位 参数
Project Unit Parameter
额定电压
Rated voltage KV 10/0.4( 高压 High pressure/ 低压 Low pressure)
最高工作电压 KV 12( 高压侧 High pressure side)
Maximum operating voltage
额定频率 Hz 50
Rated frequency
额定容量
Rated Capacity KVA 50-1600
1 分钟工频耐压 KV 35
1 minute power frequency withstand voltage
雷电冲击电压
Lightning impulse voltage KV 75
冷却方式 油浸自冷
Cooling method Oil from the cold
高压后备熔断器开断电流
High - voltage backup fuse breaking current KA 50
插入式熔断器开断电流 KA 2.5
Plug - in fuse breaking current
环境温度 ℃
Ambient temperature -35-+40
线圈允许温升 ℃ 65 www.cnboda.cn
The coil allows temperature rise
无载调压 ±5％或 ±2×2.5％
No load regulation
噪声等级 db 50
Noise level
23
防护等级
Degree of protection IP43 24
