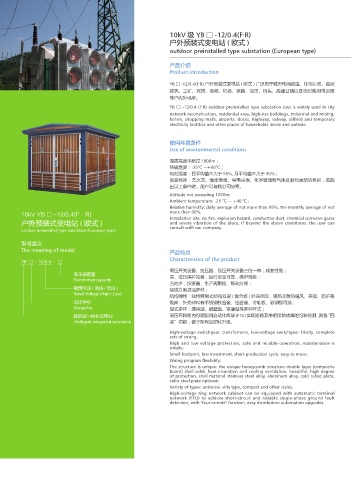

10kV 级 YB □ -12/0.4(F·R)
户外预装式变电站 ( 欧式 )
outdoor preinstalled type substation (European type)

产品介绍
Product introduction
YB □ -12/0.4(F·R) 户外预装式变电站 ( 欧式 ) 广泛用于城市电网改造、住宅小区、高层
建筑、工矿、宾馆、商场、机场、铁路、油田、码头、高速公路以及临时性用电设施
等户内外场所。
YB □ -12/0.4 (F·R) outdoor preinstalled type substation (ou) is widely used in city
network reconstruction, residential area, high-rise buildings, industrial and mining,
hotels, shopping malls, airports, docks, highway, railway, oilfield and temporary
electricity facilities and other places of households inside and outside.

使用环境条件
Use of environmental conditions

海拔高度不超过 1000m；
环境温度：-25℃ ~+40℃；
相对湿度：日平均值不大于 95%, 月平均值不大于 90%；
安装场所：无火灾、爆炸危险、导电尘埃、化学腐蚀性气体及剧烈震动的场所，若超
出以上条件时，用户可与我公司协商。
Altitude not exceeding 1000m;
Ambient temperature: -25 ℃ ~ +40 ℃ ;
Relative humidity: daily average of not more than 95%, the monthly average of not
10kV YB □ -12/0.4(F·R) more than 90%;
Installation site: no fire, explosion hazard, conductive dust, chemical corrosive gases
户外预装式变电站 ( 欧式 ) and severe vibration of the place, if beyond the above conditions, the user can
outdoor preinstalled type substation (European type) consult with our company.

型号含义
The meaning of model 产品特点
Characteristics of the product
YB □ - 12/0.4 - □
高压开关设备、变压器、低压开关设备三位一体，成套性强；
变压器容量 高、低压保护完善，运行安全可靠，维护简单；
Transformer capacity
占地少，投资省、生产周期短、移动方便；
额定电压 ( 高压 / 低压 ) 接线方案灵活多样；
Rated Voltage (High / Low)
结构独特：独特蜂窝式结构双层 ( 复合板 ) 外壳牢固，隔热又散热通风、美观、防护等
设计序号 级高，外壳材料有不锈钢钦合金、铝合金、冷轧板、彩钢板可选；
Design No. 型式多样：通用型、别墅型、紧凑型等多种样式；
智能型一体化变电站 高压环网柜内可装配网自动化终端(FTU)实现短路及单相接地故障的可靠检测，具备“四
Intelligent integrated substation 遥”功能，便于配网自动化升级。

High-voltage switchgear, transformers, low-voltage switchgear Trinity, complete
sets of strong;
High and low voltage protection, safe and reliable operation, maintenance is
simple;
Small footprint, low investment, short production cycle, easy to move;
Wiring program flexibility;
The structure is unique: the unique honeycomb structure double layer (composite
board) shell solid, heat insulation and cooling ventilation, beautiful, high degree
of protection, shell material stainless steel alloy, aluminum alloy, cold rolled plate,
color steel plate optional;
Variety of types: universal, villa type, compact and other styles;
High-voltage ring network cabinet can be equipped with automatic terminal
network (FTU) to achieve short-circuit and reliable single-phase ground fault
detection, with "four remote" function, easy distribution automation upgrades.
