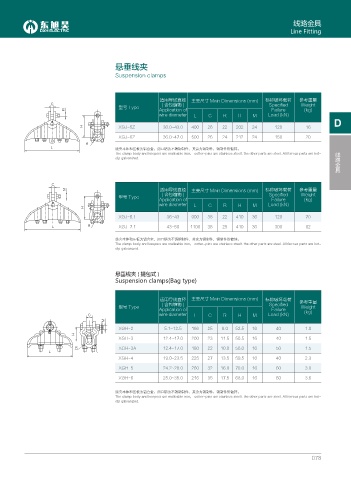

Page 97 - 四川东旭昊电气设备有限公司

线路金具
Line Fitting

悬垂线夹

Suspension clamps

适用导线直径 主要尺寸 Main Dimensions (mm) 标称破坏载荷 参考重量
% ( 含包缠物 ) Specified Weight
型号 Type
/ Application of Failure (kg)
wire diameter L C R H M Load (kN)
D
* XGJ-5Z 36.0~43.0 400 26 22 202 24 120 16
XGJ-6Z 36.0~47.0 500 26 24 212 24 150 20
4
.
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。 线路金具
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

%
/ 适用导线直径 主要尺寸 Main Dimensions (mm) 标称破坏载荷 参考重量
( 含包缠物 ) Specified Weight
型号 Type
Application of Failure (kg)
wire diameter L C R H M Load (kN)
*
XGJ-6.1 36~43 900 38 22 410 36 120 70
. 4 XGJ-7.1 43~50 1100 38 25 410 36 300 82

线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

悬垂线夹 ( 提包式 )
Suspension clamps(Bag type)

适用导线直径 主要尺寸 Main Dimensions (mm) 标称破坏载荷
( 含包缠物 ) Specified 参考重量
型号 Type Weight
Application of Failure
% wire diameter L C R H M Load (kN) (kg)
/
XGH-2 5.1~12.5 166 25 8.0 52.5 16 40 1.0
*
XGH-3 12.4~17.0 200 23 11.5 50.5 16 40 1.5
4 XGH-3A 12.4~17.0 180 22 10.0 50.0 16 50 1.5
.
XGH-4 19.0~23.5 225 27 13.5 59.5 16 40 2.3

XGH-5 24.2~28.0 260 32 16.0 70.0 16 60 3.0
XGH-6 25.0~35.0 216 35 17.5 68.0 16 60 3.6

线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.
