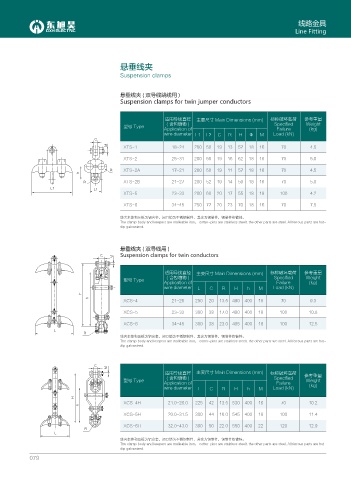

Page 98 - 四川东旭昊电气设备有限公司

线路金具
Line Fitting

悬垂线夹

Suspension clamps

悬垂线夹 ( 双导线跳线用 )
Suspension clamps for twin jumper conductors

适用导线直径 主要尺寸 Main Dimensions (mm) 标称破坏载荷 参考重量
( 含包缠物 ) Specified Weight
型号 Type
Application of Failure (kg)
wire diameter L1 L2 C R H Φ M Load (kN)
%
/ XTS-1 18~24 200 50 19 13 57 18 16 70 4.5

XTS-2 25~31 200 56 19 16 62 18 16 70 5.0
4 XTS-2A 17~21 200 50 19 11 57 18 16 70 4.5
J
4 XTS-2B 21~27 200 52 19 14 59 18 16 70 5.0
. .
XTS-5 23~33 200 60 20 17 55 18 18 100 4.2

XTS-6 34~45 250 77 20 23 70 18 16 70 7.5
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

悬垂线夹 ( 双导线用 )
% Suspension clamps for twin conductors
/

适用导线直径 主要尺寸 Main Dimensions (mm) 标称破坏载荷 参考重量
( 含包缠物 ) Specified Weight
型号 Type
Application of Failure (kg)
wire diameter L C R H h M Load (kN)
*
J
XCS-4 21~26 250 20 13.5 490 400 18 70 9.3
XCS-5 23~33 300 38 17.0 490 400 18 100 10.8
XCS-6 34~45 300 38 23.0 495 400 18 100 12.5
.
4
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

%
/
适用导线直径 主要尺寸 Main Dimensions (mm) 标称破坏载荷
( 含包缠物 ) Specified 参考重量
型号 Type Weight
Application of Failure (kg)
wire diameter L C R H h M Load (kN)
*
XCS-4H 21.0~26.0 225 42 13.5 530 400 16 70 10.2
J
XCS-5H 26.0~31.5 300 44 16.0 545 400 18 100 11.4

XCS-6H 32.0~43.0 300 50 22.0 550 400 22 120 12.9
4
.
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.
079
