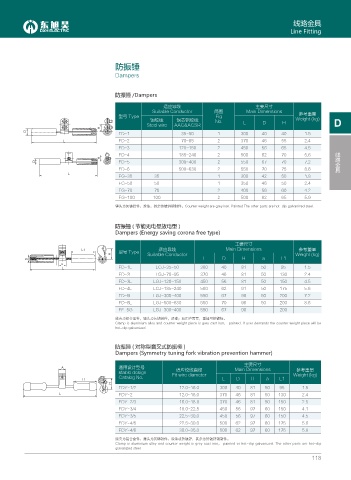

线路金具
                                                                                                     Line Fitting





                                         防振锤

                                         Dampers


                                         防振锤 /Dampers
                                                         适应导线                            主要尺寸
                                                     Suitable Conductor    简图         Main Dimensions   参考重量
                                          型号 Type                          Fig
                                                     钢绞线      钢芯铝绞线        No.       L     D      H    Weight (kg)  D
                                                   Steel wire  AAC&ACSR
                                   *
          &
                                          FD-1                 35~50        1       300    40     40      1.5
                       .                  FD-2                 70~95        2       370    46     55      2.4
                                          FD-3                 120~150      2       450    56     65      4.5
                                                                                                                     线路金具
                                          FD-4                 185~240      2       500    62     70      5.6
                                   *
             &                            FD-5                 300~400      2       550    67     70      7.2
                                          FD-6                 500~630      2       550    70     75      8.6
                        .
                                          FG-35       35                    1       300    42     50      1.8
                                          FG-50       50                    1       350    46     50      2.4
                                          FG-70       70                    2       400    56     60      4.2
                                          FG-100      100                   2       500    62     65      5.9
                                         锤头为灰铸铁件,涂漆,其余热镀锌钢制件。Counter weight are grey iren. Painted The other parts are hot-dip galvanized steel.


                                         防振锤 ( 节能无电晕放电型 )
                                         Dampers (Energy saving corona free type)

                                                                                  主要尺寸
                             .                          适应导线                   Main Dimensions          参考重量
                                       *   型号 Type  Suitable Conductor                                 Weight (kg)
          &                                                            L     D      H      a      L1
                      C
                      .                   FD-1L        LGJ-35~50      300    40     81     50     95      1.5
                                          FD-2L        LGJ-70~95      370    46     81     50    130      2.4
                                          FD-3L       LGJ-120~150     450    56     81     50    150      4.5
                                          FD-4L       LGJ-185~240     500    62     91     50    175      5.6
                                          FD-5L       LGJ-300~400     550    67     96     50    200      7.2
                                          FD-6L       LGJ-500~630     550    70     96     50    200      8.6
                                          FF-5G       LGJ-300~400     550    67     90           200
                                         线夹为铝合金件,锤头为灰铸铁件,浸漆;如用户需要,重捶可热镀锌。
                                         Clamp is aluminium alloy and counter weight piece is grey cast iron, painted. If user demands the counter weight piece will be
                                         hot-dip galvanized.


                                         防振锤 ( 对称型音叉式防振棰 )
                                         Dampers (Symmetry tuning fork vibration prevention hammer)

                                                                                     主要尺寸
                      #                   通用设计型号              适应绞线直径              Main Dimensions      参考重量
                                          stable design
                                          Catalog No.       Fit wire diameter                         Weight (kg)
                             .                                               L    D    H     a   L1
                                       *
                                          FDY-1/2              12.0~16.0     300  40   81   50   95      1.5
                     .                    FDY-2                12.0~16.0     370  46   81   50   130     2.4
                                          FDY-2/3              16.0~18.0     370  46   81   50   150     2.5
                                          FDY-3/4              18.0~22.5     450  56   97   60   150     4.1
                                          FDY-3/5              22.5~30.0     450  56   97   60   150     4.5
                                          FDY-4/5              22.5~30.0     500  62   97   60   175     5.6
                                          FDY-4/6              30.0~35.0     500  62   97   60   175     5.8
                                         线夹为铝合金件,捶头为灰铸铁件,涂漆或热镀锌,其余为热镀锌钢制件。
                                         Clamp is aluminium alloy and counter weight is grey cast iron, painted or hot-dip galvanized. The other parts are hot-dip
                                         golvanized steel
