P. 230

保护金具
                                                                                                 Protective Fitting

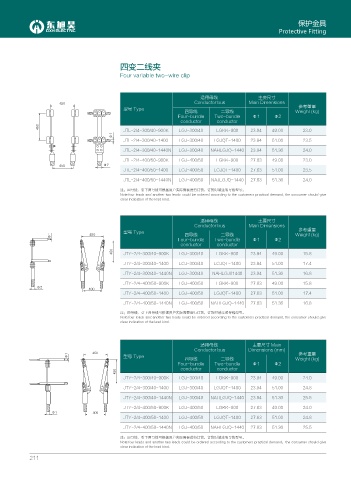

                                          四变二线夹

                                          Four variable two-wire clip


                                                                      适用母线                主要尺寸
                                                                    Conductor bus      Main Dimensions
                                           型号 Type                                                      参考重量
                                                                四导线          二导线                       Weight (kg)
                                                              Four-bundle  Two-bundle   Φ1     Φ2
                                                               conductor    conductor

                                           JTL-2/4-300/40-900K  LGJ-300/40  LGKK-900   23.94   49.00     23.0
                                        
                                           JTL-2/4-300/40-1400  LGJ-300/40  LGJQT-1400  23.94  51.00     23.5
                                           JTL-2/4-300/40-1440N  LGJ-300/40  NAHLGJQ-1440  23.94  51.36  24.0
                                           JTL-2/4-400/50-900K  LGJ-400/50  LGKK-900   27.63   49.00     23.0
                                     
                                           JTL-2/4-400/50-1400  LGJ-400/50  LGJQT-1400  27.63  51.00     23.5
                                           JTL-2/4-400/50-1440N  LGJ-400/50  NAJLGJQ-1440  27.63  51.36  24.0
                                          注:四导线、引下两导线可根据用户实际需要进行订货,订货时请注明导线型号。
                                          Note:four leads and another two leads could be ordered according to the customers practical demand, the consumer should give
                                          clear indication of the lead kind.



                                                                      适用母线                主要尺寸
                                                                    Conductor bus      Main Dimensions
                                                                                                        参考重量
                                           型号 Type
                                                               四导线          二导线                       Weight (kg)
                                                              Four-bundle  Two-bundle   Φ1     Φ2
                                                               conductor    conductor
                                             JTY-2/4-300/40-900K  LGJ-300/40  LGKK-900  23.94  49.00     15.8
                                           JTY-2/4-300/40-1400  LGJ-300/40  LGJQT-1400  23.94  51.00     17.4
                                           JTY-2/4-300/40-1440N  LGJ-300/40  NAHLGJ01440  23.94  51.36   16.8
                                           JTY-2/4-400/50-900K  LGJ-400/50  LGKK-900   27.63   49.00     15.8
              
                                           JTY-2/4-400/50-1400  LGJ-400/50  LGJQT-1400  27.63  51.00     17.4

                                           JTY-2/4-400/50-1440N  LGJ-400/50  NAHLGJQ-1440  27.63  51.36  16.8
                                          注:四导线、引下两导线可根据用户实际需要进行订货,订货时请注明导线型号。
                                          Note:four leads and another two leads could be ordered according to the customers practical demand, the consumer should give
                                          clear indication of the lead kind.



                                                                      适用母线              主要尺寸 Main
                                                                    Conductor bus     Dimensions (mm)

                                          型号 Type                                                      参考重量
                                                                四导线          二导线                       Weight (kg)
                                                              Four-bundle  Two-bundle   Φ1     Φ2
                                                               conductor    conductor

                                           JTY-2/4-300/40-900K  LGJ-300/40  LGKK-900   23.94   49.00     24.0
                                           JTY-2/4-300/40-1400  LGJ-300/40  LGJQT-1400  23.94  51.00     24.8
                                           JTY-2/4-300/40-1440N  LGJ-300/40  NAHLGJQ-1440  23.94  51.36  25.5
                                           JTY-2/4-400/50-900K  LGJ-400/50  LGKK-900   27.63   49.00     24.0
                   
                                           JTY-2/4-400/50-1400  LGJ-400/50  LGJQT-1400  27.63  51.00     24.8
                                           JTY-2/4-400/50-1440N  LGJ-400/50  NAHLGJQ-1440  27.63  51.36  25.5

                                          注:四导线、引下两导线可根据用户实际需要进行订货,订货时请注明导线型号。
                                          Note:four leads and another two leads could be ordered according to the customers practical demand,the consumer should give
                                          clear indication of the lead kind.
           211
