保护金具
Protective Fitting

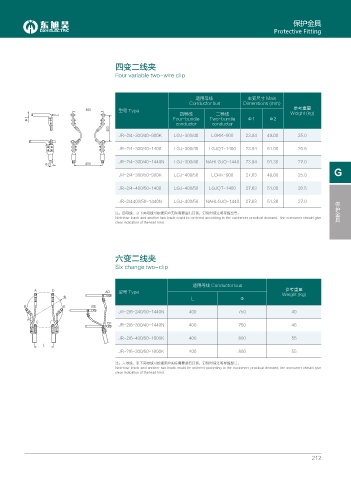

四变二线夹

Four variable two-wire clip

适用母线 主要尺寸 Main
Conductor bus Dimensions (mm)
型号 Type 参考重量
四导线 二导线 Weight (kg)
 Four-bundle Two-bundle Φ1 Φ2
conductor conductor

JR-2/4-300/40-900K LGJ-300/40 LGKK-900 23.94 49.00 25.0

JR-2/4-300/40-1400 LGJ-300/40 LGJQT-1400 23.94 51.00 26.5
JR-2/4-300/40-1440N LGJ-300/40 NAHLGJQ-1440 23.94 51.36 27.0

G
JR-2/4-300/50-900K LGJ-400/50 LGKK-900 27.63 49.00 25.0

JR-2/4-400/50-1400 LGJ-400/50 LGJQT-1400 27.63 51.00 26.5

JR-2/4400/50-1440N LGJ-400/50 NAHLGJQ-1440 27.63 51.36 27.0 保护金具
注：四导线、引下两导线可根据用户实际需要进行订货，订货时请注明导线型号。
Note:four leads and another two leads could be ordered according to the customers practical demand，the consumer should give
clear indication of the lead kind.

六变二线夹

Six change two-clip

适用母线 Conductor bus
# & #& 型号 Type 参考重量
 Weight (kg)
L Φ
$ ' $'
JR-2/6-240/30-1440N 400 750 40
% ( %( JR-2/6-300/40-1440N 400 750 46

JR-2/6-400/50-1600K 400 800 55
.
JR-2/6-300/50-1600K 400 800 55

注：六导线、引下两导线可根据用户实际需要进行订货，订货时请注明导线型号。
Note:four leads and another two leads could be ordered according to the customers practical demand, the consumer should give
clear indication of the lead kind.

212
