导线技术参数
Wire Technical Parameters

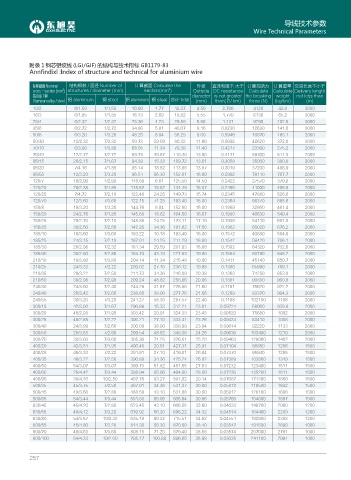

附录 1 钢芯铝绞线 (LGJ/GJF) 的结构与技术指标 GB1179-83
Annfindixl :lndex of structure and technical for aluminium wire

标称截面 Nominal 结构根数 / 直径 Number of 计算截面 Calculate the 外径 直流电阻不 大于 计算拉断力 计算重量 交货长度不小于
2
cross - section (mm ) structures / diameter (mm) section(mm ) Outside DC resistance Calculate Calculate Delivery length
2
铝合金 / 钢 diameter is not greater the breaking weight not less than
Aluminum alloy / steel 铝 aluminum 钢 steel 铝 aluminum 钢 steel 总计 total (mm) than(Ω/ km) force (N) (kg/km) (m)
10/2 6/1.50 1/1.50 10.60 1.77 12.37 4.50 2.706 4120 42.9 3000
16/3 6/1.85 1/1.85 16.13 2.69 18.82 5.55 1.779 6130 65.2 3000
25/4 6/2.32 1/2.32 25.36 4.23 29.59 6.96 1.131 9290 102.6 3000
35/6 6/2.72 1/2.72 34.86 5.81 40.67 8.16 0.8230 12630 141.0 3000
50/8 6/3.20 1/3.20 48.25 8.04 56.29 9.60 0.5946 16870 195.1 2000
50/30 12/2.32 7/2.32 50.73 29.59 80.32 11.60 0.5692 42620 372.0 3000
70/10 6/3.80 1/3.80 68.05 11.34 79.39 11.40 0.4217 23390 275.2 2000
70/40 12/2.72 7/2.72 69.73 40.67 110.40 13.60 0.4141 58300 511.3 2000
95/15 26/2.15 7/1.67 94.39 15.33 109.72 13.61 0.3058 35000 380.8 2000
95/20 7/4.16 7/1.85 95.14 18.82 113.96 13.87 0.3019 37200 408.9 2000
95/55 12/3.20 7/3.20 96.51 56.30 152.81 16.00 0.2992 78110 707.7 2000
120/7 18/2.90 1/2.90 118.89 6.61 125.50 14.50 0.2422 27570 379.0 2000
120/20 26/2.38 7/1.85 115.67 18.82 134.49 15.07 0.2496 41000 466.8 2000
120/25 7/4.72 7/2.10 122.48 24.25 149.73 15.74 0.2345 47880 526.6 2000
120/70 12/3.60 7/3.60 122.15 71.25 193.40 18.00 0.2364 98370 895.6 2000
150/8 18/3.20 1/3.20 144.76 8.04 152.80 16.00 0.1989 32860 461.4 2000
150/20 24/2.78 7/1.85 145.68 18.82 164.50 16.67 0.1980 46630 549.4 2000
150/25 26/2.70 7/2.10 148.86 24.25 173.11 17.10 0.1939 54110 601.0 2000
150/35 30/2.50 7/2.50 147.26 34.36 181.62 17.50 0.1962 65020 676.2 2000
185/10 18/3.60 1/3.60 183.22 10.18 193.40 18.00 0.1572 40880 584.0 2000
185/25 24/3.15 7/2.10 187.01 24.25 211.29 18.90 0.1542 59420 706.1 2000
185/30 26/2.98 7/2.32 181.34 29.59 201.93 18.88 0.1592 64320 732.6 2000
185/45 30/2.80 7/2.80 184.73 43.10 227.83 19.60 0.1564 80190 848.2 2000
210/10 18/3.80 1/3.80 204.14 11.34 215.48 19.00 0.1411 45140 650.7 2000
210/25 24/3.33 7/2.22 209.02 27.10 236.12 19.98 0.1380 65990 789.1 2000
210/35 26/3.22 7/2.50 211.73 34.36 246.09 20.38 0.1363 74250 853.9 2000
210/50 30/2.98 7/2.98 209.24 48.82 258.06 20.86 0.1381 90830 960.8 2000
240/30 24/3.60 7/2.40 244.29 31.67 275.96 21.60 0.1181 75620 922.2 2000
240/40 26/3.42 7/2.66 238.85 38.90 277.75 21.66 0.1209 83370 964.3 2000
240/55 30/3.20 7/3.20 241.27 56.30 297.57 22.40 0.1198 102100 1108 2000
300/15 42/3.00 7/1.67 296.88 15.33 312.21 23.01 0.09724 68060 939.8 2000
300/20 45/2.93 7/1.95 303.42 20.91 324.33 23.43 0.09520 75680 1002 2000
300/25 48/2.85 7/2.22 306.21 27.10 333.31 23.76 0.09433 83410 1058 2000
300/40 24/3.99 7/2.66 300.09 38.90 338.99 23.94 0.09614 92220 1133 2000
300/50 26/3.83 7/2.98 299.54 48.82 348.36 24.26 0.09636 103400 1210 2000
300/70 30/3.60 7/3.60 305.36 71.25 376.61 25.20 0.09463 128000 1402 2000
400/20 42/3.51 7/1.95 406.40 20.91 427.31 26.91 0.07104 88850 1286 1500
400/25 45/3.33 7/2.22 391.91 27.10 419.01 26.64 0.07370 95940 1295 1500
400/35 48/3.22 7/2.50 390.88 34.36 425.24 26.82 0.07389 103900 1349 1500
400/50 54/3.07 7/3.07 399.73 51.82 451.55 27.63 0.07232 123400 1511 1500
400/65 26/4.42 7/3.44 398.94 65.06 464.00 28.00 0.07236 135200 1611 1500
400/95 30/4.16 19/2.50 407.75 93.27 501.02 29.14 0.07087 171300 1860 1500
500/35 45/3.75 7/2.50 497.01 34.36 531.37 30.00 0.05812 119500 1642 1500
500/45 48/3.60 7/2.80 488.58 43.10 531.68 30.00 0.05912 128100 1688 1500
500/65 54/3.44 7/3.44 501.88 65.06 566.94 30.96 0.05760 154000 1897 1500
630/45 45/4.20 7/2.80 623.45 43.10 666.55 33.60 0.04633 148700 2060 1200
630/55 48/4.12 7/3.20 639.92 56.30 696.22 34.32 0.04514 164400 2209 1200
630/80 54/3.87 19/2.32 635.19 80.32 715.51 34.82 0.04551 192900 2388 1200
800/55 45/4.80 7/3.20 814.30 56.30 870.60 38.40 0.03547 191500 2690 1000
800/70 48/4.63 7/3.60 808.15 71.25 879.40 38.58 0.03574 207000 2791 1000
800/100 54/4.33 19/2.60 795.17 100.88 896.05 38.98 0.03635 241100 2991 1000
