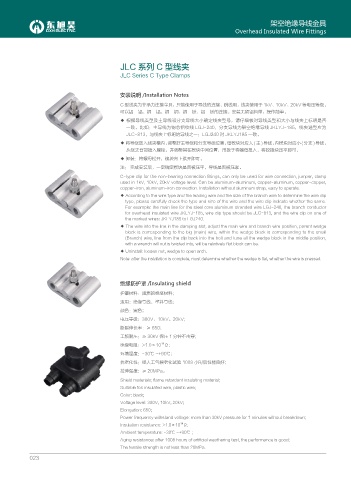

架空绝缘导线金具
Overhead Insulated Wire Fittings

JLC 系列 C 型线夹

JLC Series C Type Clamps

安装说明 /Installation Notes
C 型线夹为非承力连接金具，只能使用于导线的连接、跳线用，线夹使用于 1kV、10kV、20kV 等电压等级。
可以铝 - 铝、铜 - 铝、铜 - 铜、铜 - 铁、铝 - 铁的连接。安装无须铝包带，操作简单。
◆ 根据导线类型及主导线和分支导线大小确定线夹型号，请仔细核对导线类型和大小与线夹上标明是否
一致。比如：主导线为钢芯铝绞线 LGJ-240，分支导线为架空绝缘导线 JKLYJ-185，线夹选型应为
JLC-813，与线夹上标明的导线之一：LGJ240 对 JKLYJ185 —致。
◆ 将导线放入线夹槽内，调整好主导线和分支导线位置，母楔块对应大 ( 主 ) 导线，内楔块对应小 ( 分支 ) 导线，
从线夹背部插入螺栓，并调整其在楔块中间位置，用扳手将螺母扭入，将铰接块压平即可。
◆ 卸装：将螺母松开，楔块向上拱开即可。
注： 完成安装后，一定确定楔块是否被压平，导线是否被压紧。
C-type clip for the non-bearing connection fittings, can only be used for wire connection, jumper, clamp
used in 1kV, 10kV, 20kV voltage level. Can be aluminum-aluminum, copper-aluminum, copper-copper,
copper-iron, aluminum-iron connection. Installation without aluminum strap, easy to operate.
◆ According to the wire type and the leading wire and the size of the branch wire to determine the wire clip
type, please carefully check the type and size of the wire and the wire clip indicate whether the same.
For example: the main line for the steel core aluminum stranded wire LGJ-240, the branch conductor
for overhead insulated wire JKLYJ-185, wire clip type should be JLC-813, and the wire clip on one of
the marked wires: JKLYJ185 to LGJ240.
◆ The wire into the line in the clamping slot, adjust the main wire and branch wire position, parent wedge
block is corresponding to the big (main) wire, within the wedge block is corresponding to the small
(Branch) wire, line from the clip back into the bolt and tune all the wedge block in the middle position,
with a wrench will nut is twisted into, will be relatively flat block can be.
◆ Uninstall: loosen nut, wedge to open arch.
Note: after the installation is complete, must determine whether the wedge is flat, whether the wire is pressed.

绝缘防护罩 /Insulating shield
护罩材料：阻燃的绝缘材料；
适用：绝缘导线，塑料导线；
颜色：黑色；
电压等级：380V、10kV、20kV；
断裂伸长率：≥ 650；
工频耐压：≥ 30kV 保压 1 分钟不击穿；
14
绝缘电阻：>1.0×10 Ω；
环境温度：-30℃ ~+90℃；
抗老化性：经人工气候老化试验 1008 小时后性能良好；
拉伸强度：≥ 20MPa。
Shield materials; flame retardant insulating material;
Suitable for: insulated wire, plastic wire;
Color: black;
Voltage level: 380V, 10kV, 20kV;
Elongation: 650;
Power frequency withstand voltage: more than 30kV pressure for 1 minutes without breakdown;
14
Insulation resistance: >1.0×10 Ω;
Ambient temperature: -30℃ ~+90℃ ;
Aging resistance: after 1008 hours of artificial weathering test, the performance is good;
The tensile strength is not less than 20MPa.
