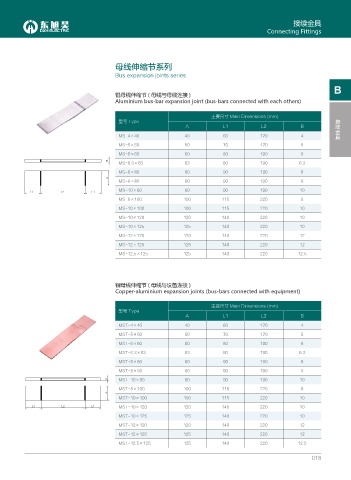

Page 37 - 四川东旭昊电气设备有限公司

接续金具
Connecting Fittings

母线伸缩节系列

Bus expansion joints series
B
铝母线伸缩节 ( 母线与母线连接 )
Aluminium bus-bar expansion joint (bus-bars connected with each others)

主要尺寸 Main Dimensions (mm) 接续金具
型号 Type
A L1 L2 B
MS-4×40 40 60 170 4
MS-5×50 50 70 170 5
MS-6×60 60 80 190 6
MS-6.3×63 63 80 190 6.3
MS-6×80 80 90 190 6
$
MS-8×80 80 90 190 8
MS-10×80 80 90 190 10
. . .
#
MS-8×100 100 115 220 8
MS-10×100 100 115 220 10
MS-10×120 120 140 220 10
MS-10×125 125 140 220 10
MS-12×120 120 140 220 12
MS-12×125 125 140 220 12
MS-12.5×125 125 140 220 12.5

铜母线伸缩节 ( 母线与设备连接 )
Copper-aluminium expansion joints (bus-bars connected with equipment)

主要尺寸 Main Dimensions (mm)
型号 Type
A L1 L2 B
MST-4×40 40 60 170 4
MST-5×50 50 70 170 5
MST-6×60 60 80 190 6
MST-6.3×63 63 80 190 6.3
MST-6×80 80 90 190 6
MST-8×80 80 90 190 8
$ MST-10×80 80 90 190 10
MST-8×100 100 115 220 8
#
MST-10×100 100 115 220 10
. . . MST-10×120 120 140 220 10
MST-10×125 125 140 220 10
MST-12×120 120 140 220 12
MST-12×125 125 140 220 12
MST-12.5×125 125 140 220 12.5

018
