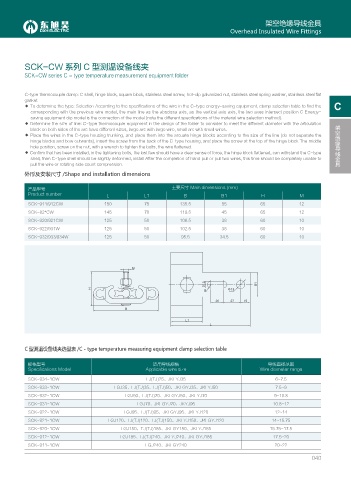

架空绝缘导线金具
Overhead Insulated Wire Fittings
SCK-CW 系列 C 型测温设备线夹
SCK-CW series C - type temperature measurement equipment folder
C-type thermocouple clamp: C shell, hinge block, square block, stainless steel screw, hot-dip galvanized nut, stainless steel spring washer, stainless steel flat
gasket.
◆ To determine the type: Selection According to the specifications of the wire in the C-type energy-saving equipment, clamp selection table to find the C
corresponding with the previous wire model, the main line as the abscissa axis, as the vertical axis axis, the two axes intersect position C Energy-
saving equipment clip model is the connection of the model (note the different specifications of the material wire selection method).
◆ Determine the size of line: C-type thermocouple equipment in the design of the folder to consider to meet the different diameter with the articulation 架空绝缘导线金具
block on both sides of the arc have different sizes, large arc with large wire, small arc with small wires.
◆ Place the wires in the C-type housing trunking, and place them into the arcuate hinge blocks according to the size of the line (do not separate the
hinge blocks and bow outwards), insert the screw from the back of the C-type housing, and place the screw at the top of the hinge block The middle
hole position, screw on the nut, with a wrench to tighten the bolts, the wire flattened.
◆ Confirm that has been installed, in the tightening bolts, the last few should have a clear sense of force, the hinge block flattened, can withstand the C-type
shell, then C-type shell should be slightly deformed, install After the completion of hand pull or pull two wires, this time should be completely unable to
pull the wire or rotating side count compression.
外形及安装尺寸 /Shape and installation dimensions
产品型号 主要尺寸 Main dimensions (mm)
Product number L L1 B B1 H M
SCK-911/912CW 150 75 135.5 55 65 12
SCK-82*CW 145 70 119.5 45 65 12
SCK-920/921CW 125 50 106.5 38 60 10
SCK-922/931W 125 50 102.5 38 60 10
SCK-932/933/934W 125 50 95.5 34.5 60 10
.
#
)
3
#
-
-
C 型测温设备线夹选型表 /C - type temperature measuring equipment clamp selection table
规格型号 适用导线规格 导线直径范围
Specifications Model Applicable wire size Wire diameter range
SCK-934-1CW LJ(TJ)25、JKLYJ35 6~7.5
SCK-933-1CW LGJ35、LJ(TJ)35、LJ(TJ)50、JKLGYJ35、JKLYJ50 7.5~9
SCK-932-1CW LGJ50、LJ(TJ)70、JKLGYJ50、JKLYJ70 9~10.8
SCK-931-1CW LGJ70、JKLGYJ70、JKYJ95 10.8~12
SCK-922-1CW LGJ95、LJ(TJ)95、JKLGYJ95、JKLYJ120 12~14
SCK-921-1CW LGJ120、LJ(TJ)120、LJ(TJ)150、JKLYJ150、JKLGYJ120 14~15.75
SCK-920-1CW LGJ150、TJ(TJ)185、JKLGY150、JKLYJ185 15.75~17.5
SCK-912-1CW LGJ185、LJ(TJ)240、JKLYJ240、JKLGYJ185 17.5~20
SCK-911-1CW LGJ240、JKLGY240 20~22
