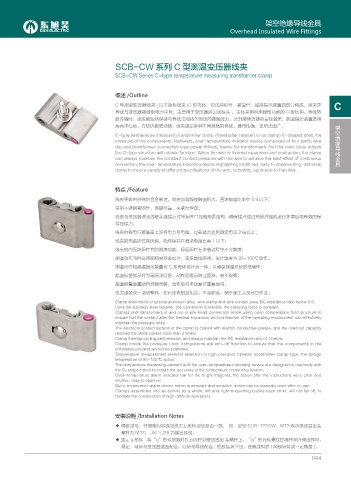

SCB-CW 系列 C 型测温变压器线夹

SCB-CW Series C-type temperature measuring transformer clamp

概述 /Outline
C 型测温变压器线夹 ( 以下简称线夹 )C 形壳体、内压块组件、紧固件、超温指示装置四部分构成；线夹是 C
导线与变压器接续型电力金具，主要用于变压器进出线桩头 ；主体采用具用弹性功能的 C 型结构，导线热
胀冷缩时，线夹能始终保持与导线之间持久恒定的接触压力，达到接续连接的最佳效果；超温指示装置选用
高亮洋红色，方便远距离观测；线夹满足多种不同规格的导线，通用性强，适用泛围广。 架空绝缘导线金具
C-type temperature measuring transformer clamp (hereinafter referred to as clamp) C-shaped shell, the
pressure of the components, fasteners, over-temperature indicator device composed of four parts; wire
clip and transformer connection type power fittings, mainly for transformers And the main body adopts
the C-type structure with elastic function. When the wire is thermal expansion and contraction, the clamp
can always maintain the constant contact pressure with the wire to achieve the best effect of continuous
connection; the over-temperature indicating device Highlighting bright red, easy to observe long-distance;
clamp to meet a variety of different specifications of the wire, versatility, applicable to Pan Wai.

特点 /Feature
线夹壳体由特殊铝合金制造，线夹与导线接触面积大，直流电阻比率在 0.9 以下；
采用不锈钢紧固件，连接可靠，夹紧力恒定；
线夹与变压器进出线桩头连接方式采用开口压缩抱紧结构，确保接点经过热胀冷缩的运行环境后能有效的保
持压接力；
线夹的各电气接触面上涂有电力导电脂，过载能力达到额定电流 2 倍以上；
线夹的热循环性能优良，始终保持在直流电阻比率 1 以下；
线夹的内压块组件有防脱落功能，保证组件在安装过程中不会散落；
测温动作元件选用高精度双金属片，变压器线夹类、设计温度为 95~100℃动作。
测温元件和超温指示装置与 C 形壳体设计为一体，以确保测温系统的准确性；
超温报警指示杆为高亮洋红色，动作后指示明显直观，易于观察；
超温报警装置动作准确灵敏，动作后可手动复位重复使用。
线夹组装成一活动整体，左右压块相互扣合，不会脱落，便于施工人员高空作业。
Clamp shell made of special aluminum alloy, wire clamp and wire contact area, DC resistance ratio below 0.9;
Uses the stainless steel fastener, the connection is reliable, the clamping force is constant;
Clamps and transformers in and out of pile head connection mode using open compression hold structure to
ensure that the contact after the thermal expansion and contraction of the operating environment can effectively
maintain the pressure relay;
The electrical contact surface of the clamp is coated with electric conductive grease, and the overload capacity
reaches the rated current more than 2 times;
Clamp thermal cycling performance, and always maintain the DC resistance ratio of 1 below;
Clamp inside the pressure block components are anti-off function to ensure that the components in the
installation process will not be scattered;
Temperature measurement element selection of high precision bimetal, transformer clamp type, the design
temperature of 95~100 ℃ action.
The temperature measuring element and the over-temperature indicating device are designed in one body with
the C-shaped shell to ensure the accuracy of the temperature measuring system;
Over-temperature alarm indicator bar for the bright magenta, the action after the instructions were clear and
intuitive, easy to observe;
Over-temperature alarm device action is accurate and sensitive, action can be manually reset after re-use.
Clamps assembled into an activity as a whole, left and right briquetting buckle each other, will not fall off, to
facilitate the construction of high-altitude operations.

安装说明 /Installation Notes
◆ 确定型号：仔细核对导线与线夹上所标型号是否一致， 如：型号 SCB-122CW，M12 表示变压器出头
螺杆为 M12， JKLYJ35 为接出导线。
◆ 固定 g 形件：将“g”形件按顺时针方向拧到变压器出 头螺杆上，“g”形元件螺纹拧满并向外伸出即可。
规定：母块与变压器弧面配合，公块与导线配合，把铰接块拿出，使其成拱状 ( 两铰块转成一定角度 )。
