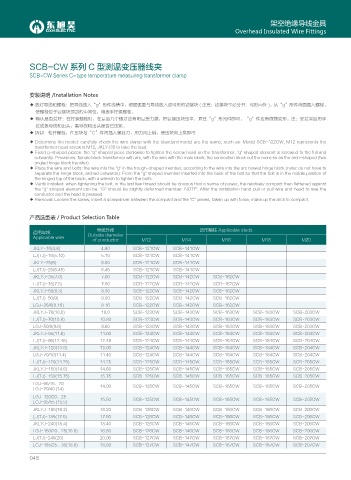

SCB-CW 系列 C 型测温变压器线夹

SCB-CW Series C-type temperature measuring transformer clamp

安装说明 /Installation Notes
◆ 放好导线和螺栓：把导线放入“g”形件线槽中，根据弧面与导线放入成弓形的铰接块 ( 注意：铰接块不必分开，弓形向外 )。从“g”形件背面插入螺栓，
使螺栓位于铰接块顶部的中间位，用扳手拧紧螺栓。
◆ 确认是否装好：在拧紧螺栓时，在最后几个螺牙应有明显受力感，把铰接压块压平，顶住“g”形元件即可。“g”件应有微微变形。注：安装完后用手
拉或扳导线和出头，看导线和出头是否已压紧。
◆ 拆卸：松开螺栓，在压块与“C”件间插入螺丝刀，用力向上撬，使压块向上拱即可
◆ Determine the model: carefully check the wire clamp with the standard model are the same, such as: Model SCB-122CW, M12 represents the
transformer head screw is M12, JKLYJ35 to take the lead.
◆ Fixed g-shaped pieces: the "g" shaped piece clockwise to tighten the screw head on the transformer, "g" shaped element is screwed to the full and
outwardly. Provisions: female block transformer with arc, with the wire with the male block, the connection block out the more so as the arch-shaped (two
angled hinge block transfer).
◆ Place the wire and bolts: the wire into the "g" in the trough-shaped member, according to the wire into the arc bowed hinge block (note: do not have to
separate the hinge block, arched outwards). From the "g" shaped member inserted into the back of the bolt so that the bolt is in the middle position of
the hinged top of the block, with a wrench to tighten the bolts.
◆ Verify installed: when tightening the bolt, in the last few thread should be obvious that a sense of power, the relatively compact then flattened against
the "g" shaped element can be. "G" should be slightly deformed member. NOTE: After the installation hand pull or pull wire and head to see the
conductor and the head is pressed.
◆ Removal: Loosen the screw, insert a screwdriver between the compact and the "C" pieces, taken up with force, make up the arch to compact.

产品选型表 / Product Selection Table

导线外径 适用螺柱 Applicable studs
适用导线 Outside diameter
Applicable wire
of conductor M12 M14 M16 M18 M20
JKLY-16(4.8) 4.80 SCB-121CW SCB-141CW
LJ(TJ)-16(5.10) 5.10 SCB-121CW SCB-141CW
JKLY-25(6) 6.00 SCB-121CW SCB-141CW
LJ(TJ)-25(6.45) 6.45 SCB-121CW SCB-141CW
JKLYJ-35(7.0) 7.00 SCB-122CW SCB-142CW SCB-162CW
LJ(TJ)-35(7.5) 7.50 SCB-122CW SCB-142CW SCB-162CW
JKLYJ-50(8.3) 8.30 SCB-122CW SCB-142CW SCB-162CW
LJ(TJ)-50(9) 9.00 SCB-122CW SCB-142CW SCB-162CW
LGJ-35/6(8.16) 8.16 SCB-122CW SCB-142CW SCB-162CW
JKLYJ-70(10.0) 10.0 SCB-123CW SCB-143CW SCB-163CW SCB-183CW SCB-203CW
LJ(TJ)-70(10.8) 10.80 SCB-123CW SCB-143CW SCB-163CW SCB-183CW SCB-203CW
LGJ-50/8(9.6) 9.60 SCB-123CW SCB-143CW SCB-163CW SCB-183CW SCB-203CW
JKLYJ-95(11.6) 11.60 SCB-124CW SCB-144CW SCB-164CW SCB-184CW SCB-204CW
LJ(TJ)-95(12.48) 12.48 SCB-124CW SCB-144CW SCB-164CW SCB-184CW SCB-204CW
JKLYJ-120(13.0) 13.00 SCB-124CW SCB-144CW SCB-164CW SCB-184CW SCB-204CW
LGJ-70/10(11.4) 11.40 SCB-124CW SCB-144CW SCB-164CW SCB-184CW SCB-204CW
LJ(TJ)-120(14.25) 14.25 SCB-125CW SCB-145CW SCB-165CW SCB-185CW SCB-205CW
JKLYJ-150(14.6) 14.60 SCB-125CW SCB-145CW SCB-165CW SCB-185CW SCB-205CW
LJ(TJ)-150(15.75) 15.75 SCB-125CW SCB-145CW SCB-165CW SCB-185CW SCB-205CW
LGJ-95/15、20 14.00 SCB-125CW SCB-145CW SCB-165CW SCB-185CW SCB-205CW
LGJ-70/40 (14)
LGJ-120/20、25
LGJ-95/55 (15.5) 15.50 SCB-125CW SCB-145CW SCB-165CW SCB-185CW SCB-205CW
JKLYJ-185(16.2) 16.20 SCB-126CW SCB-146CW SCB-166CW SCB-186CW SCB-206CW
LJ(TJ)-185(17.5) 17.50 SCB-126CW SCB-146CW SCB-166CW SCB-186CW SCB-206CW
JKLYJ-240(18.4) 18.40 SCB-126CW SCB-146CW SCB-166CW SCB-186CW SCB-206CW
LGJ-150/20、25(16.8) 16.80 SCB-126CW SCB-146CW SCB-166CW SCB-186CW SCB-206CW
LJ(TJ)-240(20) 20.00 SCB-127CW SCB-147CW SCB-167CW SCB-187CW SCB-207CW
LGJ-185/25、30(18.8) 18.80 SCB-127CW SCB-147CW SCB-167CW SCB-187CW SCB-207CW
