架空绝缘导线金具
                                                                                Overhead Insulated Wire Fittings

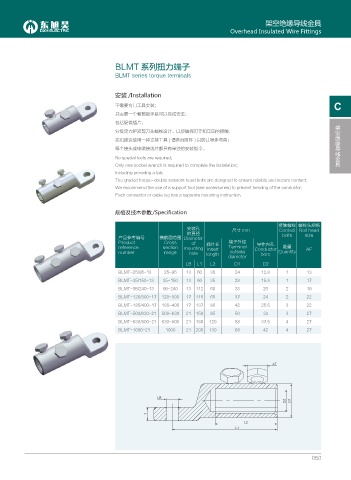

                                         BLMT 系列扭力端子

                                         BLMT series torque terminals


                                         安装 /Installation
                                                                                                                    C
                                         不需要专门工具安装;
                                         只需要一个套筒扳手就可以完成安装;
                                         包括提供插片;                                                                     架空绝缘导线金具
                                         分级定力矩双剪刀头螺栓设计,以便确保可靠和牢固的接触;
                                         我们建议使用一种支持工具 ( 请参阅附件 ) 以防止导体弯曲;
                                         每个接头或电缆接线片都具有单独的安装指令。
                                         No special tools are required;
                                         Only one socket wrench is required to complete the installation;
                                         Including providing a tab;
                                         The graded torque-double scissors head bolts are designed to ensure reliable and secure contact;
                                         We recommend the use of a support tool (see accessories) to prevent bending of the conductor;
                                         Each connector or cable lug has a separate mounting instruction.


                                         规格及技木参数 /Specification

                                                                                                 接触螺栓 螺栓头规格
                                                                 安装孔             尺寸 mm           Contact  Bolt head
                                                                 的直径                              bolts   size
                                          产品参考编号        横截面范围 Diameter
                                          Product        Cross     of   插片长     端子外径     导体内孔
                                          reference      section   mounting  Insert   Terminal   Conductor   数量  AF
                                          number          range   hole  length  outside    bore  Quantity
                                                                                diameter
                                                                 LB  L1  L2       D1       D2
                                          BLMT-25/95-13   25~95  13  60  30       24       12.8    1      13
                                          BLMT-35/150-13  35~150  13  86  35      28       15.8    1      17
                                          BLMT-95/240-13  95~240  13  112  60     33        20     2      19
                                          BLMT-120/300-17  120~300  17  115  65   37        24     2       22
                                          BLMT-185/400-17  185~400  17  137  80   42       25.5    3       22
                                          BLMT-500/630-21  500~630  21  150  95   50        33     3      27
                                          BLMT-630/800-21  630~800  21  180  120  58       37.5    4      27
                                          BLMT-1000-21    1000   21  200  130     68        42     4      27






                                                                                               "'





                                                       -#
                                                                                                   %   %
