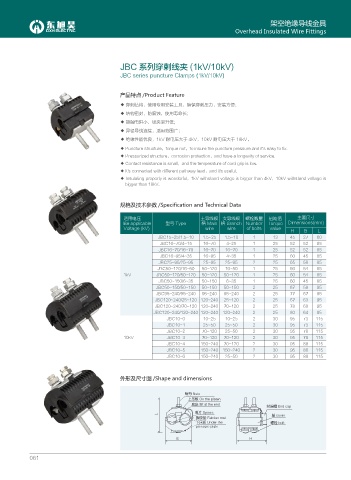

Page 80 - 四川东旭昊电气设备有限公司

架空绝缘导线金具
Overhead Insulated Wire Fittings

JBC 系列穿剌线夹 (1kV/10kV)

JBC series puncture Clamps (1kV/10kV)

产品特点 /Product Feature
◆ 穿刺结构，使用专用安装工具，确保穿刺压力，安装方便；
◆ 结构密封，防腐蚀，使用寿命长；
◆ 接触电阻小，线夹温升低；
◆ 异径导线连接，适用范围广；
◆ 绝缘性能优良，1kV 耐电压大于 4kV，10kV 耐电压大于 18kV。
◆ Puncture structure，torque nut，to insure the puncture pressure.and it's easy to fix.
◆ Pressurized structure，corrosion protection，and have a longevity of service.
◆ Contact resistance is small，and the temperature of cord grip is low.
◆ It's connected with different pathway lead，and it's useful.
◆ Insulating property is wonderful，1kV withstand voltage is bigger than 4kV，10kV withstand voltage is
bigger than 18kV.

规格及技术参数 /Specification and Technical Data

适用电压 主导线规 支导线规 螺栓数量 扭矩值 主要尺寸
Be applicable 型号 Type 格 Main 格 Branch Number Torque Dimensions(mm)
Voltage (kV) wire wire of bolts value
H B L
JBC15~25/1.5~10 1.5~25 1.5~10 1 13 45 27 60
JBC16~70/4~15 16~70 4~25 1 25 52 52 85
JBC16~70/16~70 16~70 16~70 1 25 52 52 85
JBC16~95/4~35 16~95 4~35 1 25 60 45 85
JBC25~95/25~95 25~95 25~95 2 25 65 56 85
JBC50~120/16~50 50~120 16~50 1 25 56 54 85
1kV JBC50~120/50~120 50~120 50~120 1 25 60 54 85
JBC50~150/6~35 50~150 6~35 1 25 60 45 85
JBC50~150/50~150 50~150 50~150 2 25 67 58 95
JBC95~240/95~240 95~240 95~240 2 25 77 67 95
JBC120~240/25~120 120~240 25~120 2 25 67 63 95
JBC120~240/70~120 120~240 70~120 2 25 78 60 95
JBC120~240/120~240 120~240 120~240 2 25 80 64 95
JBC10-0 10~25 10~25 2 30 95 73 115
JBC10-1 25~50 25~50 2 30 95 73 115
JBC10-2 70~120 25~50 2 30 95 78 115
10kV JBC10-3 70~120 70~120 2 30 95 78 115
JBC10-4 150~240 70~120 2 30 95 89 115
JBC10-5 150~240 150~240 2 30 95 86 115
JBC10-6 150~240 25~50 2 30 95 86 115

外形及尺寸图 /Shape and dimensions

ᚬ෽ 0WVU
εרೞ 1P VJG RNCVGP
঩ݲ 5KV CV VJG GPF
ࣟኑঊ 'PF ECR
ը࿯ 5RKPGU
. ᅠ EQXGT
඼ᑬޘ 4WDDGT OCV
ζרೞ 7PFGT VJG ᚬഠ DQNV
RTGUUWTG RNCVG
$ *
