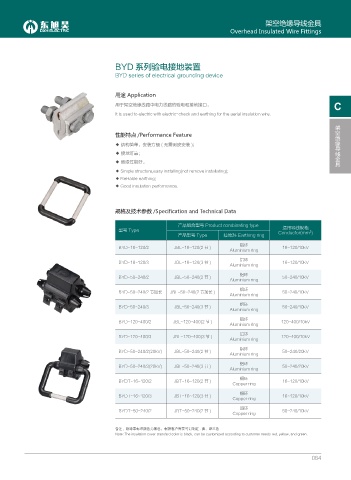

Page 83 - 四川东旭昊电气设备有限公司

架空绝缘导线金具
Overhead Insulated Wire Fittings

BYD 系列验电接地装置

BYD series of electrical grounding device

用途 Application
用于架空绝缘线路中电力线路的验电和接地接口。 C
It is used to electric with electric-check and earthing for the aerial insulation wire.
架空绝缘导线金具
性能特点 /Performance Feature

◆ 结构简单，安装方便 ( 无需剥皮安装 )；
◆ 接地可靠；
◆ 绝缘性能好。
◆ Simple structure,easy installing(not remove installating);
◆ ReHable earthing;
◆ Good insulation performance.

规格及技术参数 /Specification and Technical Data

产品组合型号 Product combinating type
适用导线规格
型号 Type Conductor(mm )
2
产品型号 Type 接地环 Earthing ring
铝环
BYD-16~120/2 JBL-16~120(2 节 ) 16~120/10kV
Aluminium ring
铝环
BYD-16~120/3 JBL-16~120(3 节 ) 16~120/10kV
Aluminium ring
铝环
BYD-50~240/2 JBL-50~240(2 节 ) 50~240/10kV
Aluminium ring
铝环
BYD-50~240/2 节加长 JBL-50~240(2 节加长 ) 50~240/10kV
Aluminium ring
铝环
BYD-50~240/3 JBL-50~240(3 节 ) 50~240/10kV
Aluminium ring
铝环
BYD-120~400/2 JBL-120~400(2 节 ) 120~400/10kV
Aluminium ring
铝环
BYD-120~400/3 JBL-120~400(3 节 ) 120~400/10kV
Aluminium ring
铝环
BYD-50~240/2(20kV) JBL-50~240(2 节 ) 50~240/20kV
Aluminium ring
铝环
BYD-50~240/3(20kV) JBL-50~240(3 节 ) 50~240/20kV
Aluminium ring
铜环
BYDT-16~120/2 JBT-16~120(2 节 ) 16~120/10kV
Copper ring
铜环
BYDT-16~120/3 JBT-16~120(3 节 ) 16~120/10kV
Copper ring
铜环
BYDT-50~240/2 JBT-50~240(2 节 ) 50~240/10kV
Copper ring

备注：绝缘罩标准颜色为黑色，根据客户需要可订制红 . 黄、绿三色
Note: The insulation cover standard color is black, can be customized according to customer needs red, yellow, and green.

064
