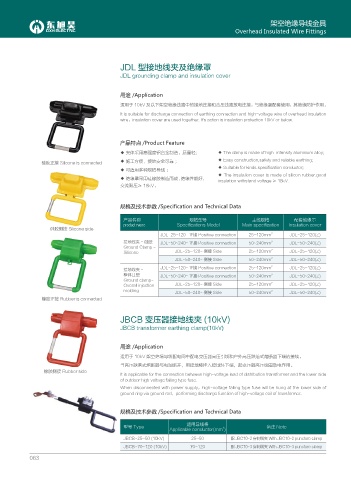

P. 82
架空绝缘导线金具
Overhead Insulated Wire Fittings
JDL 型接地线夹及绝缘罩
JDL grounding clamp and insulation cover
用途 /Application
适用于 10kV 及以下架空绝缘线路中的接地连接和高压线路放电连接，与绝缘罩配套使用，其绝缘防护作用。
It is suitable for discharge connection of earthing connection and high-voltage wire of overhead insulation
wire，insulation cover are used together. It's action is insulation protection 10kV or below.
产品特点 /Product Feature
◆ 夹体采用高强度铝合金制造，质量轻； ◆ The damp is made of high-intensity aluminium alloy;
硅胶正接 Silicone is connected ◆ 施工方便，接地安全可靠 ； ◆ Easy construction,safety and reliable earthing;
◆ Suitable for kinds specification conductor;
◆ 可适用多种规格导线 ；
◆ The insulation cover is made of silicon rubber.good
◆ 绝缘罩采用硅橡胶制造而成，绝缘性能好，
insulation withstand voltage ≥ 18kV.
交流耐压≥ 18kV。
规格及技术参数 /Specification and Technical Data
产品名称 规格型号 主线规格 配套绝缘罩
product name Specifications Model Main specification Insulation cover
硅胶侧接 Silicone side
JDL-25~120- 正接 Positive connection 25~120mm 2 JDL-25~120(Z)
接地线夹 - 硅胶 JDL-50~240- 正接 Positive connection 50~240mm 2 JDL-50~240(Z)
Ground Clamp -
Silicone JDL-25~120- 侧接 Side 25~120mm 2 JDL-25~120(Z)
JDL-50~240- 侧接 Side 50~240mm 2 JDL-50~240(Z)
JDL-25~120- 正接 Positive connection 25~120mm 2 JDL-25~120(Z)
接地线夹 -
整体注塑 JDL-50~240- 正接 Positive connection 50~240mm 2 JDL-50~240(Z)
Ground clamp-
Overall injection JDL-25~120- 侧接 Side 25~120mm 2 JDL-25~120(Z)
molding JDL-50~240- 侧接 Side 50~240mm 2 JDL-50~240(Z)
橡胶正接 Rubber is connected
JBCB 变压器接地线夹 (10kV)
JBCB transformer earthing clamp(10kV)
用途 /Application
适用于 10kV 架空绝缘导线配电网中配电变压器高压引线和户外高压跌落式熔断器下端的接续。
当高压跌落式熔断器与电源断开，用接地棒挂入接地环下端，起变压器高压线圈放电作用。
橡胶侧接 Rubber side
It is applicable for the connection between high-voltage lead of distribution transformer and the lower side
of outdoor high voltage falling type fuse.
When disconnected with power supply，high-voltage falling type fuse will be hung at the lower side of
ground ring via ground rod，performing discharge function of high-voltage coil of transformer.
规格及技术参数 /Specification and Technical Data
适用导线格
型号 Type 2 备注 Note
Applicable conductor(mm )
JBCB-25~50 (10kV) 25~50 配 JBC10-2 穿刺线夹 With JBC10-2 puncture clamp
JBCB-70~120 (10kV) 70~120 配 JBC10-3 穿刺线夹 With JBC10-3 puncture clamp
