线路金具
Line Fitting

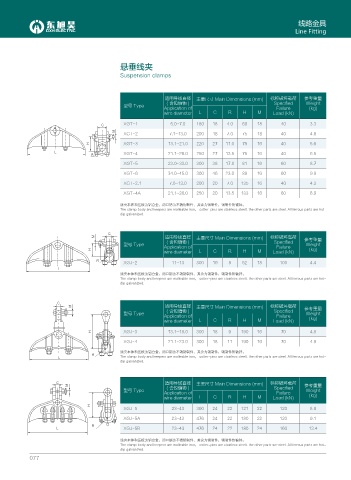

悬垂线夹

Suspension clamps

适用导线直径 主要尺寸 Main Dimensions (mm) 标称破坏载荷 参考重量
( 含包缠物 ) Specified Weight
型号 Type
Application of Failure (kg)
wire diameter L C R H M Load (kN)
% XGT-1 5.0~7.0 180 18 4.0 60 18 40 3.3
/
XGT-2 7.1~13.0 200 18 7.0 75 18 40 4.9
* XGT-3 13.1~21.0 220 27 11.0 75 16 40 5.6
.
4 XGT-4 21.1~26.0 250 27 13.5 75 16 40 6.5
XGT-5 23.0~33.0 300 38 17.0 81 16 60 8.7
XGT-6 34.0~45.0 300 46 23.0 89 16 60 9.8
XGT-2.1 7.0~13.0 200 20 7.0 135 16 40 4.3
XGT-4A 21.1~26.0 250 20 13.5 133 16 60 6.9

线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

%
/ 适用导线直径 主要尺寸 Main Dimensions (mm) 标称破坏载荷
( 含包缠物 ) Specified 参考重量
型号 Type Application of Failure Weight
* (kg)
wire diameter L C R H M Load (kN)
4
XGJ-2 11~13 300 19 8 52 18 100 4.4
.
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

%
/ 适用导线直径 主要尺寸 Main Dimensions (mm) 标称破坏载荷 参考重量
( 含包缠物 ) Specified
型号 Type Weight
Application of Failure (kg)
wire diameter L C R H M Load (kN)
* XGJ-3 13.1~18.0 300 18 9 190 16 70 4.8
XGJ-4 21.1-23.0 300 18 11 190 16 70 4.9
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
4
. The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.

% 适用导线直径 主要尺寸 Main Dimensions (mm) 标称破坏载荷
/ ( 含包缠物 ) Specified 参考重量
型号 Type Weight
Application of Failure (kg)
wire diameter L C R H M Load (kN)
*
XGJ-5 23~43 390 24 22 121 22 120 8.8
XGJ-5A 23~43 476 24 22 180 22 120 9.1
4
. XGJ-5B 23~43 476 24 22 180 24 160 13.4
线夹本体和压板为铝合金，闭口销为不锈钢制件，其余为钢制件，钢制件热镀锌。
The clamp body and keepers are malleable iron， cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-
dip galvanized.
077
