SD 系列仪表

SD Series Meter

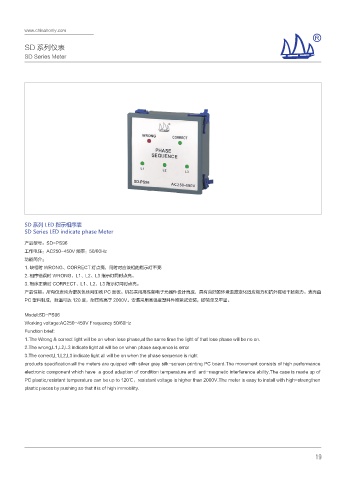

SD 系列 LED 指示相序表
SD Series LED indicate phase Meter

产品型号：SD-PS96
工作电压：AC250-450V 频率：50/60Hz
功能简介：
1. 缺相时 WRONG、CORRECT 灯点亮，同时对应该相的指示灯不亮
2. 相序错误时 WRONG、L1、L2、L3 指示灯同时点亮。
3. 相序正确时 CORRECT、L1、L2、L3 指示灯同时点亮。
产品性能：所有仪表均为银灰色丝网印刷 PC 面板。机芯采用高性能电子元器件设计而成，具有良好的环境温度变化适应能力和抗外磁场干扰能力。表壳由
PC 塑料制成，耐温可达 120 度，耐压均高于 2000V。安装采用高强度塑料件推紧式安装，即简单又牢固。

Model:SD-PS96
Working voltage:AC250-450V Frequency 50/60Hz
Function brief:
1.The Wrong & correct light will be on when lose phase,at the same time the light of that lose phase will be no on.
2.The wrong,L1,L2,L3 indicate light all will be on when phase sequence is error
3.The correct,L1,L2,L3 indicate light all will be on when the phase sequence is right
products specification:all the meters are quipped with silver gray silk-screen printing PC board.The movement consists of high performance
electronic component which have a good adaption of condition temperature and anti-magnetic interference ability.The case is made up of
PC plastic,resistant temperature can be up to 120℃，resistant voltage is higher than 2000V.The meter is easy to install with high-strengthen
plastic pieces by pushing so that it is of high immobility.
