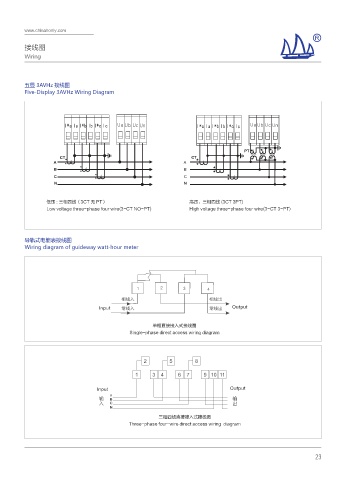

接线图
Wiring
五显 3AVHz 接线图
Five-Display 3AVHz Wiring Diagram
低压 : 三相四线（3CT 无 PT） 高压：三相四线 (3CT 3PT)
Low voltage three-phase four wire(3-CT NO-PT) High voltage three-phase four wire(3-CT 3-PT)
导轨式电能表接线图
Wiring diagram of guideway watt-hour meter
Input Output
三显三相三线电压接线图
Three-Phase, Three-Phase and Three-Wire Voltage Connection Diagram 单相直接接入式接线图
Single-phase direct access wiring diagram
Input Output
三相四线直接接入式接线图
三相三线电压 2PT
Three-phase four-wire direct access wiring diagram
three-phase three wire
voltage 2-PT
