接线图
Wiring

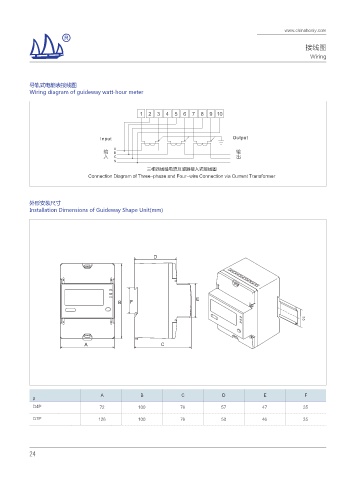

导轨式电能表接线图
Wiring diagram of guideway watt-hour meter
Input Output
三相四线经电流互感器接入式接线图
Connection Diagram of Three-phase and Four-wire Connection via Current Transformer
外形安装尺寸
Installation Dimensions of Guideway Shape Unit(mm)
D
E
B F
A C
ຓྙ ͎ ͏ ͐ ͑ ͒ ͓
͠͵ͮͽͲḤͰͼͱͲḤ
D4P 72 100 76 57 47 35
D7P 126 100 76 58 46 35
24
